    Visaton Speaker Driver - R 10 S - 8 Ohm Full Range Speaker
    Art. No. 2037

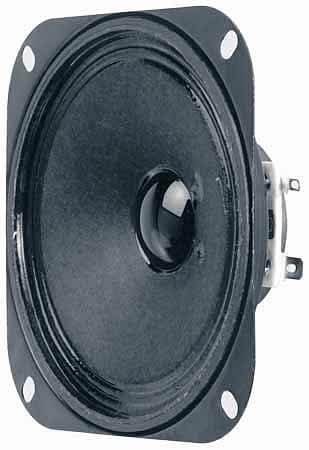

    Visaton R10S - 8 Ohm full-range speaker.
    Visaton R10S - 8 Ohm Full Range Speaker



    Characteristics and Sound Properties
    10 cm (4") fullrange speaker with high efficiency and balanced frequency response. Especially suitable as control speaker for electronic devices.

    Equivalent to model R 10 S TE - 8 Ohm, but with connectors 5.2 x 0.5 mm (+) and 2.8 x 0.5 mm (-).

    Typical applications:-
    - Control speakers for electronic devices
    - Ceiling- mounted speakers in railway carriages and buses
    - Model construction



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 8 Ohm
    Frequency response 100–13000 Hz
    Mean sound pressure level 90 dB (1W/1m)
    Opening angle (-6 dB) 92°/4000 Hz
    Excursion limit ± 1.5 mm
    Resonance frequency fs 160 Hz
    Magnetic induction 0.95 T
    Magnetic flux 135 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 15 mm
    Height of winding 4 mm
    Cutout diameter 93 mm
    Net weight 0.16 kg
    DC resistance Rdc 7.2 Ohm
    Mechanical Q factor Qms 6.27
    Electrical Q factor Qes 2.92
    Total Q factor Qts 1.99
    Equivalent volume Vas 1.7 litres
    Effective piston area Sd 56 cm2
    Dynamically moved mass Mms 2 grams
    Force factor Bxl 2.0 Tm
    Inductance of the voice coil L 0.5 mH
    Connections 5.2 x 0.5 mm (+)
    2.8 x 0.5 mm (−)
    Temperature range −25 ... 70 °C
    Temperature Range





    Driver Dimensions

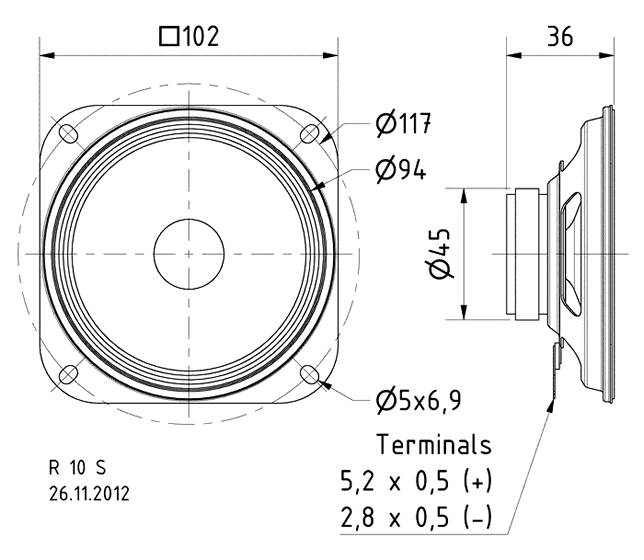

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

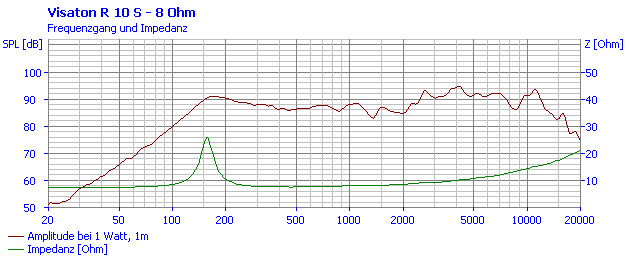

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

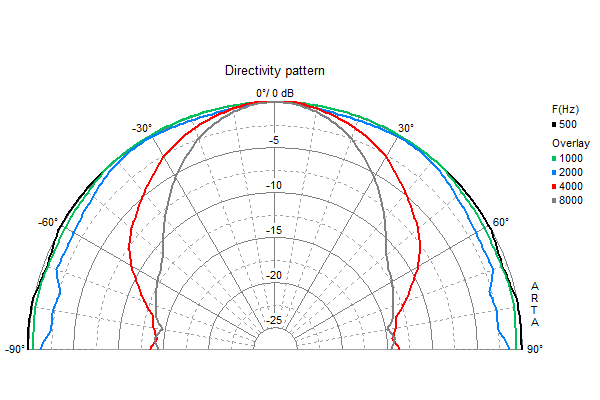

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
