    Visaton Speaker Driver - TIW 200 XS - 8 Ohm High End Woofer
    Art. No. 1340

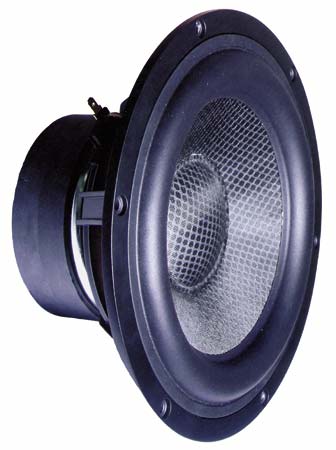

    Visaton TIW200XS - 8 Ohm High End Woofer.
    Visaton TIW200XS - 8 Ohm High End Woofer



    Characteristics and Sound Properties
    20 cm (8") High-end woofer specially for use as a small subwoofer. The extra-wide elastic cone, the long voice coil and particularly large magnet arrangement give this speaker extremely long excursion.

    Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cutouts in the aluminium diecast cone to vent the centring unit from behind) losses and flow noise are minimised. The capton voice coil carrier and the long voice coil enable the driver to withstand considerable loads.

    The diaphragm is a sandwich construction made up of layers of fibreglass and polyester fabric which makes it particularly rigid and low in resonance. These design features result in high level accuracy and excellent low-range bass imaging even in smaller cabinets.



    Technical Specifications

    Rated power 120 W
    Maximum power 180 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu-7500 Hz
    Mean sound pressure level 84 dB (1W/1m)
    Opening angle (-6 dB) 48°/4000 Hz
    Excursion limit ± 12.5 mm
    Resonance frequency fs 30 Hz
    Magnetic induction 1.1 T
    Magnetic flux 1050 µWb
    Height of front pole-plate 8 mm
    Voice coil diameter 38 mm
    Height of winding 30 mm
    Cutout diameter 190 mm
    Net weight 3.5 kg
    DC resistance Rdc 6.0 Ohm
    Mechanical Q factor Qms 5.19
    Electrical Q factor Qes 0.50
    Total Q factor Qts 0.46
    Equivalent volume Vas 51.5 litres
    Effective piston area Sd 206 cm2
    Dynamically moved mass Mms 33 grams
    Force factor Bxl 8.51 Tm
    Inductance of the voice coil L 1.6 mH



    Recommended Cabinet Sizes

    Volume / Principle BR Port fb fc / QTC
    20 litre / closed - - 52 Hz / 0.77
    30 litre / closed - - 46 Hz / 0.68
    20 litre / bass reflex BR 19.24 39 Hz -
    30 litre / bass reflex BR 19.24 32 Hz -
    50 litre / bass reflex BR 25.50 31 Hz -
    fb = Enclosure resonance (bass reflex system)
    fc = System resonance (sealed box system)
    QTC = The system's Q at resonance (fc)



    Driver Dimensions

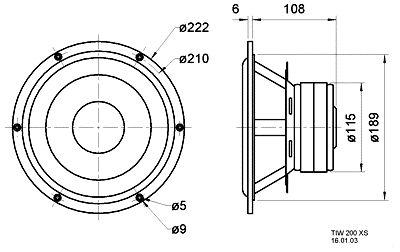

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

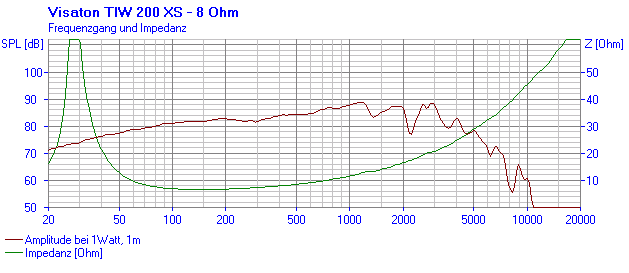

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

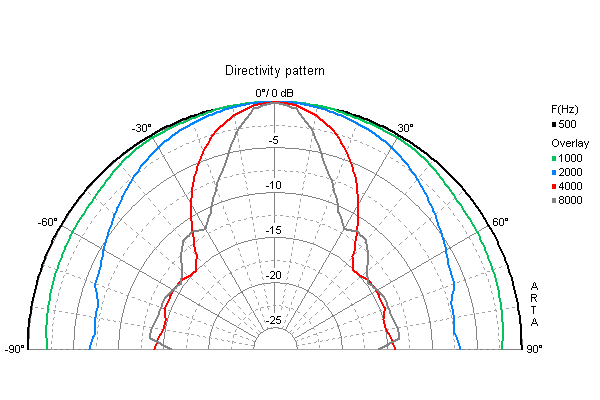

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)



    Waterfall Spectrum

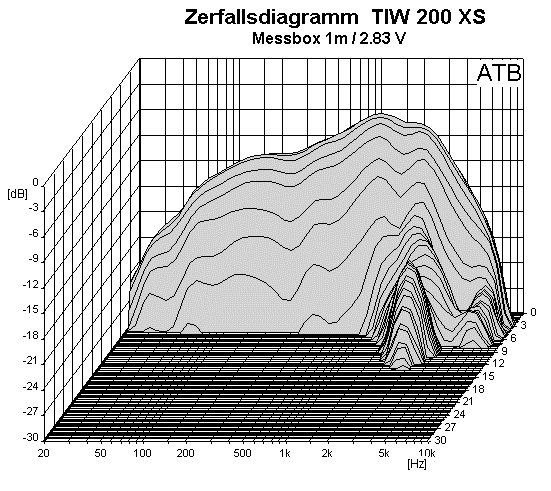

    Loudspeaker Waterfall Spectrum Chart
    Loudspeaker Waterfall Spectrum Chart
