    Directional Patch 5.8 GHz SMA Articulated Antenna

    The 5.8GHz directional antenna is a high gain, excellent choice to use RF Explorer analyser to scan in a specific direction. As opposed to omnidirectional antennas such as dipole types, this patch antenna has an 8dBi gain in the front face. It includes a true SMA connector (not RP-SMA as most in the market) and therefore fits perfectly on all RF Explorer models plus SMA connections on other devices.

    This antenna is recommended for high sensitivity detection of RF sources with suitable RF Explorer Spectrum Analysers, including distant transmitters, focus and orientate antennas or find nearby hidden bug devices. It is also perfect to find your lost drone or RC plane as long as still transmit valid signal and optimise your wifi network.

    Alternatively, it can be used in the RF Explorer Signal Generator to produce a quality long distant RF source to determine path loss and adjust antenna orientation in an RF link.

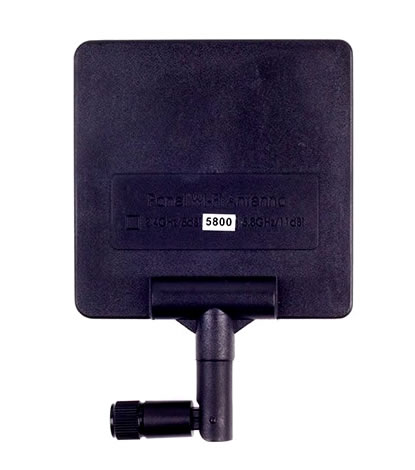

    Directional Patch 5.8Ghz SMA Articulated Antenna For RF Explorers Rear View
    Directional Patch 5.8 GHz SMA Articulated Antenna for RF Explorers - Rear View



    Directional Patch 5.8Ghz SMA Articulated Antenna For RF Explorers
    Directional Patch 5.8 GHz SMA Articulated Antenna for RF Explorers



    Directional Patch 2.4Ghz SMA Articulated Antenna For RF Explorers Connection
    Directional Patch 5.8 GHz SMA Articulated Antenna for RF Explorers Connection




    Directional Patch 2.4Ghz SMA Articulated Antenna For RF Explorers Top View
    Directional Patch 5.8 GHz SMA Articulated Antenna for RF Explorers - Top View



    Features:

    • Patch aerial 5.8 GHz - perfect for WiFi, wireless video / audio systems, Bluetooth, drones, FPV (first person view) drone, remote control systems
    • SMA standard connector for direct fit in RF Explorer devices

    Specifications:

    • Impedance: 50 Ohm
    • Connector: SMA male
    • Type: Patch articulated
    • Characterised response: 5600-5900 MHz
    • Radiation lobe: 40 degrees
    • VSWR: <2.0
    • Polarisation: vertical
    • Gain: up to 8dBi
    • Max power: 50W
    • RoHS compliant
