DSO Experimenter Scope

Thumbnail Filmstrip of DSO Experimenter Scope Images

    Purchase DSO Experimenter Scope

    SKU: DSO-Experimenter DSO Experimenter Scope

    $55.00 each
    Brand: DSO Seeed Studio
    Quantity in Basket:  None



    1 available.




    Digital Storage Oscilloscope Experimenter's Version

    This digital storage oscilloscope is very cost effective with a load of features, it allows you to save up to six captures to EEPROM and retain after power down, with a maximum sample rate of 5M/s (auto mode). It is totally MCU based, excellent as a educational / training project for students / hobbyists or to build into other equipment.

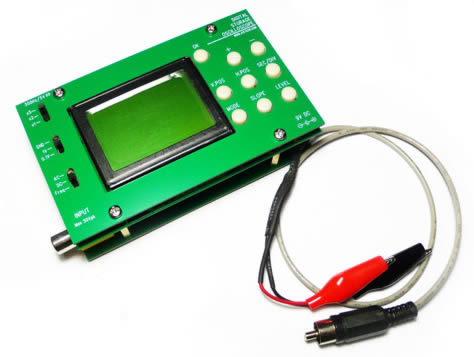

    Digital Storage Oscilloscope experimenter's version.
    Digital Storage Oscilloscope experimenter's version.

    Features:

    • Max sample rate - 5M/s (AUTO mode) 8 bits
    • Sample memory depth - 256 bytes
    • Analogue bandwidth - 1MHz
    • Vertical sensitivity - 100mV/Div - 5V/Div
    • Vertical position adjustable with indicator
    • Input impedance - 1M Ohm
    • Max input voltage - 50Vpp (1x probe)
    • DC / AC coupling
    • Horizontal - 2us/Div - 10m (minute)/Div
    • Auto, normal and single trig modes
    • Rising / falling edge trigger
    • External trig available
    • Trig level adjustable with indicator
    • Hold / run feature
    • Save up to 6 captures to EEPROM and retain after power down
    • Retrieve and display saved captures
    • Transfer its screen to PC as bitmap file via serial connection
    • Built-in 500Hz / 5Vpp test signal
    • Frequency counter (only for TTL level input signal)
    • Dimension: 110mm X 65mm X 25mm (without case)
    • 9V DC 1A (1000mA) power supply required - not supplied. (2.1mm DC plug - centre pin is positive, OD 5mm, ID 2.1mm)

    Download Instructions (PDF)
