SKU: Blaupunkt-Frankfurt-RCM-82 Blaupunkt Frankfurt RCM 82 DAB Bluetooth USB Car Radio

Blaupunkt Frankfurt RCM 82 DAB - MP3 car radio with Bluetooth / DAB / USB / SD / iPod / AUX-IN

Features

• High-end CODEM IV world tuner FM, AM, DAB, DAB+ tuner with radio text / DLS, allusion functions (memory scan/ Tape scan)
• USB (2x), microSD with MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV Support, front AUX, Apple iPod Support
• Bluetooth telephony via internal or external microphone
• Audio streaming with title display
• Audio Mix- option for mobile phone navigation
• Access to voice assistants (e.g. Siri, Google, Alexa)
• Wake-up on call
• Twin- Connect
• Phonebook access
• Digital Signal Processing
• 2x 14-band equalizer Sound Presets
• Loudness
• 4-channel preamp output + sub-out
• 4x 50 watts
• Vario Colour (4096 colours)
• 2-line display
• DIM function
• Direct access to all audio sources
• Persistent memory
• Short installation depth

Blaupunkt Frankfurt RCM 82 DAB Car Radio

Radio Tuner

• World tuner (switchable) EU (Australia), USA, South America, Thailand
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87.5 - 108 MHz
• Frequency band AM/MW: 531 - 1602 / 530 - 1710 kHz
• Number of stations 15x FM, 10x AM, 15x DAB
• Radiotext
• Travelstore / Memory Travelstore Yes/ 5x FMT, 5x AMT
• Band Scan + Preset Scan FM / DAB Yes/ Yes
• Sensitivity (FM) Two levels (lo/ dx)
• Hi-Cut (FM) Yes (multi-stage switchable)
• DAB-DAB Service following where available
• DAB-FM Service following where available

Blaupunkt Frankfurt RCM 82 DAB Car Radio Connections

Media Player

• AUX Front Side: Yes (3.5mm jack)
• AUX-IN automatic detection/activation Yes
• USB front panel Yes (Type A, recessed socket)
• USB Rear Panel: Yes (Type A, Cable)
• Memory card reader Yes (microSD, microSDHC, microSDXC)

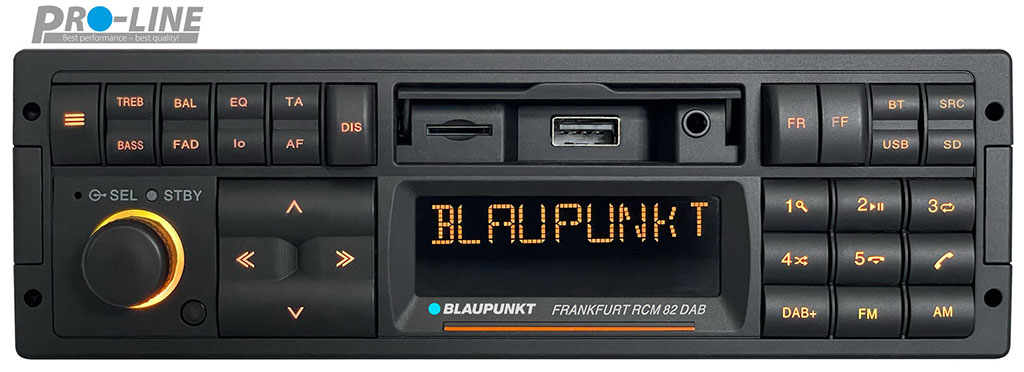

• Concealed front inputs Yes (USB & microSD with the flap closed) usable)
• Compatible formatting (USB, memory cards) FAT16, FAT32, exFAT
• Maximum memory size (USB, memory cards) > 128 GB
• Maximum number of files / folders (USB, memory cards) > 30,000
• MP2, MP3, WMA, FLAC, M4A(AAC), APE, WAV formats
• Display options ID3V2 (Title, Artist, Album), Folder, File, Season
• Folder & File Browsing Yes
• Scrolling Yes (one-time/repetitive)
• iPod, iPhone control Yes (via USB front/ rear)
• Shuffle Folder/ Media Yes/ Yes
• Repetition Title/ Folder/ All Yes/ Yes/ Yes
• Mix / Repeat / Scan yes / yes / yes

Bluetooth:

• Making phone calls: Yes
• Internal microphone Yes
• Possibility of connecting external microphone Yes
• Answer/Reject Call Yes/ Yes
• Access Phonebook: Yes (max. 1000 numbers)
• Audio Streaming Yes
• Audio Streaming ID3 Track Display Yes (Title, Artist, Album, Playing Time)
• Access to voice assistants
• (e.g. Siri, Google, Alexa) Yes
• Mobile Navigation Audio Mix Yes
• Auto wake-up on call Yes (when radio off + ignition on)
• Fast pairing without a PIN Yes
• Automatic reconnection: Yes
• Bluetooth Version 5.0 LE
• Number of paired devices max. last 5
• Number at the same time verb. Devices max. 2 (when Twin Connect is enabled)
• Supported profiles A2DP, AVRCP, HFP, SPP
• Audio Codecs aptX, AAC, SBC
• Availability/support of the functions depend on the user phone/app used!

Sound:

• Equaliser number of bands/ design/ quality filter 2x 14/ parametric/ 1.00- 2.00
• Bass / treble adjustment Yes / yes (+/- 12 levels)
• Source-specific bass / treble adjustment Yes
• Balance/ Fader Yes/ Yes (+/- 12 levels)
• HPF/ LPF Yes, separate for front/rear channels, variable
• Loudness Yes
• Sound Presets Yes, Rock, Pop, Classical
• Speaker outputs (channels) 4
• Preamp outputs (channels, voltage) 4 (RCA, < 4V)
• Max. power 4 x 50 watts
• Sinusoidal power at 14.4 V 4 x 24 watts (according to DIN 45324)
• Sub-Out 2 (RCA, Gain/Frequency variable)

General:

• Display LCD, negative, anti-reflective, wide-angle, 2-line, Alphanumeric/ Symbols
• Illumination color Display/ buttons Vario Color, 4096 colors
• Day/night mode: Yes (manual/via dimmer connection)
• Brightness Multi-level, variable
• Time display: Yes
• Low standby current Yes (< 3.5 mA )
• Antenna inputs FM DIN/ ISO, DAB SMB (with 12 V phantom power)
• Ext. hands-free microphone jack
• Permanent Memory Yes (Settings & Presets)
• Weight: approx. 0.67 kg
• Dimensions 50mm x 178mm x 116mm (H x W x D, housing only), 58mm x 186mm x 10mm (H x W x D, front without buttons), approx.
• Operating voltage/ power consumption 10.5-14.4 V / < 10A in operation, ACC off < 3.5 mA

Included:

• Unlocking tool
• Connection cable (ISO A, B)
• Antenna adapter (DIN / ISO)
