Mercedes-Benz W124 Rear Speaker Adaptor Mounting Rings

Rear Parcel Shelf Speaker Adaptor Mounts for Mercedes E-Class (W124, 1984-1997)

Description:

Make speaker installation easy with these Mercedes W124 specific speaker ring adaptors, with the same three mounting clips as the originals. Upgrade the original speakers and improve your sound: remove the original speakers and clip these into the existing holes. Designed especially for our CX120 120mm (5 inch) replacement speakers, which can be selected as an option. Please check your vehicle first to ensure proper fitment.

Key Features:

• W124 Specific: Made for the rear parcel shelf speaker positions in the Mercedes E-Class W124.
• Three Mounting Clips: The same three-clip fixing as the originals, so they clip into the existing holes.
• Suits 120mm Speakers: Designed for our CX120 120mm replacement speakers.
• Supplied as a Pair: Two rings per pack, one for each side.

Typical Uses:

• Replacing worn, damaged or poor sounding original rear speakers.
• Upgrading the sound of a W124 with new 120mm speakers.
• Restorations where the original speaker are broken or missing.

Specifications:

• Suggested speaker diameter: 120mm (approx.)
• Installation location: rear parcel shelf
• Inner cut-out: 110mm (approx.)
• Outer size: 127mm (approx.)
• Height: 27mm excluding mounting lugs (approx.)
• Height: 35mm including mounting lugs (approx.)
• Contents: 1 pair

Installation Tips:

• Remove the original speakers, and any grille or trim, from the rear parcel shelf.
• Clip a ring into each existing speaker hole, making sure all three clips click into place.

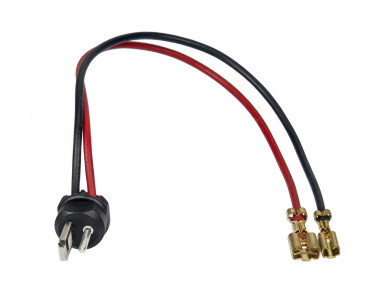

• Connect the speaker wiring. Some Mercedes speaker leads use 2-pin DIN plugs, so an adaptor may be needed.
• Fit each speaker to its ring and refit any grille or trim.
• Check there is enough clearance behind the parcel shelf for the speaker depth before you finish.

Check Before Ordering:

• These rings are made for the W124 parcel shelf speaker positions. Please check that your vehicle has the original three-clip speaker holes, and contact us to confirm first if in doubt.
• Note these rings are not generally suitable for standard 4" or 5.25" speakers. They are suited to our W124 specific 120mm speakers.
• Speakers are optional, and are not included unless you select them.
