SKU: img-StageLine-M-243970-STA500-Power-Amplifier img Stage Line Power Amp STA-500

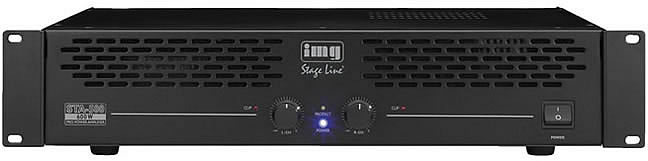

Monacor IMG Stage Line STA-500 600W Stereo Amplifier

High-quality amplifier with high power reserves and an exceptionally favourable price make this amplifier from IMG Stage Line a top choice! Highly recommended for stage, DJ and commercial applications, plus domestic applications require a lot of power.

• Fan cooling
• 2 level controls
• Ground lift switch
• Speaker switch-on delay
• Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
• 1 LED per channel for indicating overload (clip)
• 19" Rack mount or table-top
• Part No. 243970

Monacor IMG StageLine STA-500.

Specifications:

• Output power: 2x 200 WRMS into 4 Ohms
• Output power: 2x 125 WRMS into 8 Ohms
• Max. output power: 600 W
• Inputs: 1.3 V / 55 kOhm
• Frequency range: 10-20,000 Hz
• S/N ratio: 64 dB
• Crosstalk attenuation: > 55 dB
• THD: < 0.05 %
• Power supply: 240 VAC / 50 Hz / 730 VA
• Admiss. ambient temp. 0-40 °C
• Dimensions: 482 x 95 x 300 mm, 2 RS (19 inch rack mount)
• Weight: 7.6 kg
• Inputs: 1x 6.3 mm jack L/R; 1x RCA L/R
• Outputs: 2x SPEAKER; 1x 6.3 mm jack L/R; 2x pair of screw terminals

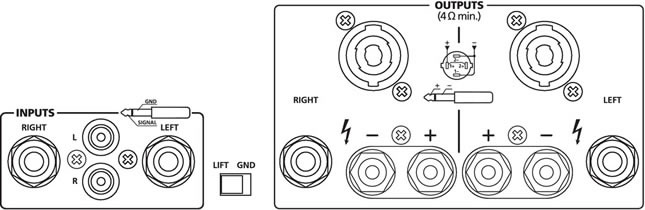

Connections:

Rear connections for the Monacor IMG Stage Line STA-500.
