    Wavecor WF152BD06 - 8 Ohm 6in. Glass Fibre Cone Mid-Woofer

    Thumbnail Filmstrip of Wavecor WF152BD06 - 8 Ohm 6in. Glass Fibre Cone Mid-Woofer Images

      Purchase Wavecor WF152BD06 - 8 Ohm 6in. Glass Fibre Cone Mid-Woofer

      SKU: Wavecor-Mid-Woofer-WF152BD06 Wavecor WF152BD06 - 8 Ohm 6in. Glass Fibre Cone Mid-Woofer

      $125.00 each
      Brand: Wavecor
      Quantity in Basket:  None



      Sorry, we are currently sold out of:
      Wavecor WF152BD06 - 8 Ohm 6in. Glass Fibre Cone Mid-Woofer.
      More stock is due soon!


      Wavecor Speaker Driver - WF152BD06 - 8 Ohm 6" Glass Fibre Cone Mid-Woofer

      Description
      The 6" transducer WF152BD06 (8 ohm) was designed as high performance bass and midrange units for compact monitors and high-end hi-fi speakers.



      Features

      • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
      • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
      • Cone made of a new paper/glass fiber mix with improved consistency and stability
      • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
      • Vented voice coil former for reduced distortion and compression
      • Vented center pole with dual flares for reduced noise level at large cone excursions
      • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
      • Large motor with 1.25" voice coil diameter for better control and power handling
      • Built-in alu field-stabilising ring for reduced distortion at high levels Low-loss suspension (high Qm) for better reproduction of details and dynamics
      • Black motor parts for better heat transfer to the surrounding air
      • Conex spider for better durability under extreme conditions Gold plated terminals to ensure long-term trouble free connection

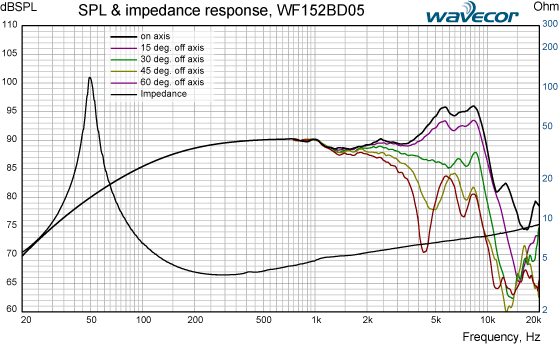

      Frequency SPL and Impedance Response Graphs


      Loudspeaker Frequency Response Graph
      Measuring conditions, SPL
      Driver mounting: Flush in infinite baffle
      Microphone distance: 1.0 m
      Input level: 2.83 VRMS
      Smoothing: 1/6 oct.

      Loudspeaker Impedance Response Graph
      Measuring conditions, impedance
      Driver mounting: Free air, no baffle
      Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA
      Smoothing: None



      Technical Specifications

      Notes Parameter   Value Unit


      Before
      Burn-in

      		 After
      Burn-in
        Nominal size 6 inch
        Nominal impedance 8 Ohm
        Recommended max. upper frequency limit
      		 3 kHz
      1, 4 Sensitivity, 2.83V/1m (average SPL in range 300 - 1,000 kHz) 87 dB
      2, 4 Power handling, short term, IEC 268-5, no additional filtering 230 W
      2, 4 Power handling, long term, IEC 268-5, no additional filtering 200 W
      2, 4 Power handling, continuous, IEC 268-5, no additional filtering. 100 W
        Effective radiating area, Sd 93 cm2
      3, 4, 6 Resonance frequency (free air, no baffle), Fs 51.5 46 Hz
        Moving mass, incl. air (free air, no baffle), Mms 12.8 g
      3, 4 Force factor, Bxl 8.0 -
      3, 4, 6 Suspension compliance, Cms 0.75 0.94 mm/N
      3, 4, 6 Equivalent air volume, Vas 9.2 11.5 lit.
      3, 4, 6 Mechanical resistance, Rms 0.41 0.46 Ns/M
      3, 4, 6 Mechanical Q, Qms 10.1 8.0 -
      3, 4, 6 Electrical Q, Qes 0.41 0.36 -
      3, 4, 6 Total Q, Qts 0.39 0.35 -
      4 Voice coil resistance, RDC 6.3 Ohm
      5 Voice coil inductance, Le (measured at 10 kHz) 0.19 mH
        Voice coil inside diameter 32 mm
        Voice coil winding height 14 mm
        Air gap height 5 mm
        Theoretical linear motor stroke, Xmax ±4.5 mm
        Magnet weight 550 g
        Total unit net weight excl. packaging 1.44 kg
      3, 4, 5 Krm 74 mOhm
      3, 4, 5 Erm 0.41 -
      3, 4, 5 Kxm 195 mH
      3, 4, 5 Exm 0.28 -
      Note 1: Measured in infinite baffle.
      Note 2: Tested in free air (no cabinet).
      Note 3: Measured using a semi-constant current source, nominal level 2 mA.
      Note 4: Measured at 25 deg. C
      Note 5: It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the ",Wright empirical model", also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm.
      Note 6: After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wav

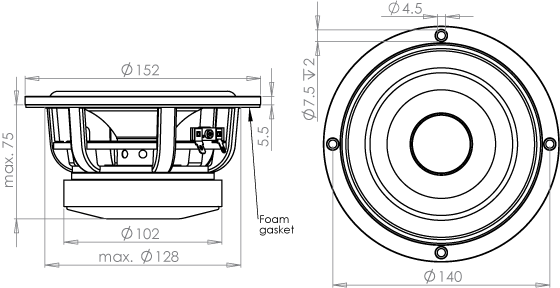

      Driver Nominal Dimensions


      Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

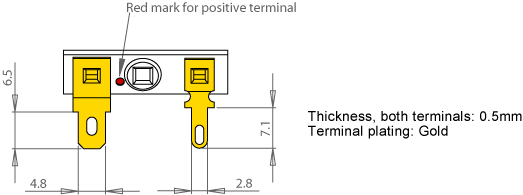

      Terminal Nominal Dimensions


      Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
      Thickness, both terminals: 0.5 mm
      Terminal plating: Gold
