5.25in. - 4 Ohm - Neo - WF132TU01

Thumbnail Filmstrip of 5.25in. - 4 Ohm - Neo - WF132TU01 Images

    Purchase 5.25in. - 4 Ohm - Neo - WF132TU01

    SKU: WC-WF132TU01 5.25in. - 4 Ohm - Neo - WF132TU01

    $195.00 each
    Size Approx: 5.25" / 130 mm / 5 1/4"
    Brand: Wavecor
    Quantity in Basket:  None



    1 available.




    Wavecor Speaker Driver - WF132TU01 - 4 Ohm 5¼ Neodymium Die Cast Car Mid-Woofer

    Description
    WF132TU01 is a mid/woofer designed for demanding bass and midrange applications. It works equally well for most applications but is designed especially for automotive high-end sound.

    The very rigid die cast alu chassis follows the common standard dimensions for easy installation in cars. WF132TU01 is powered by a dual neodymium magnet structure that ensures good efficiency and optimized T/S parameters.

    The large 32mm voice coil and the special heat sink ensure high power handling - thermally and mechanically. The optimized paper cone ensures wide bandwidth and low distortion. Distortion is further reduced by efficient venting of chassis and voice coil. WF132TU01 is an obvious choice for 2-way high-end car speaker systems.



    Features

    • Rigid die cast alu chassis to withstand challenging car applications
    • Vented voice coil former for reduced distortion and compression
    • Vented chassis for lower air flow speed reducing audible distortion
    • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
    • Large motor system with 1¼” voice coil diameter and dual neodymium magnet for better control and efficiency
    • Large heat sink for increased heat transfer obtaining high long-term power handling
    • Long linear stroke motor for reduced distortion at high levels Linear suspension with specially designed
    • CONEX damper (spider) for long durability under extreme operating conditions
    • Gold plated terminals to prevent oxidation for long-term reliable connection - important in a car environment



    Frequency SPL and Impedance Response Graphs

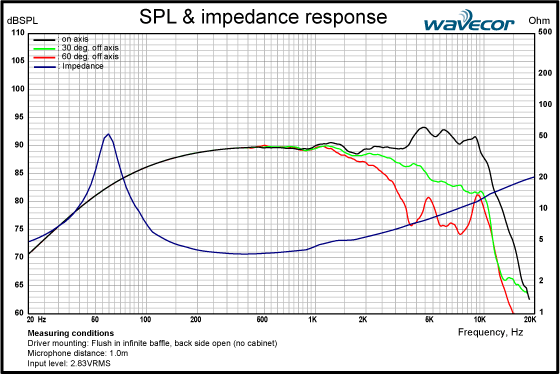

    Loudspeaker Frequency Response Graph
    Loudspeaker Frequency Response Graph
    Measuring conditions, SPL
    Driver mounting: Flush in infinite baffle
    Microphone distance: 1.0 m
    Input level: 2.83 VRMS
    Smoothing: 1/6 oct.




    Loudspeaker Impedance Response Graph
    Measuring conditions, impedance
    Driver mounting: Free air, no baffle
    Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA
    Smoothing: None



    Technical Specifications

    Parameter Value Unit
    Nominal size inch
    Nominal impedance 4 Ohm
    Recommended upper frequency limit
    4 kHz
    Sensitivity, 2.83V/1m, (average 200-3,000Hz) 89.5 dB
    Voice coil diameter 32.5 mm
    Voice coil height 11 mm
    Air Gap Height 4.0 mm
    Voice coil resistance, RDC 3.2 Ohm
    Voice coil inductance 0.16 mH
    Magnet weight (dual neodymium) 102 g
    Effective radiating area, Sd 95 sq.cm
    Power handling, continuous, IEC 268-5 55 W
    Resonance freq., Fs 60 Hz
    Moving mass, incl. air 10.0 g
    Force factor, Bxl 5.2 Tm
    Mechanical Q, Qm 12 -
    Electrical Q, Qe 0.45 -
    Total Q, Qt 0.43 -
    Suspension compliance, Cms 0.70 mm/N
    Equiv. air volume, Vas 8.5 lit.
    Total unit net weight 0.65 kg



    Driver Nominal Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Terminal Nominal Dimensions

    Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
    Thickness, both terminals: 0.5 mm
    Terminal plating: Gold
