    Visaton Speaker Driver - R 10 SC - 100 V
    Art. No. 2045

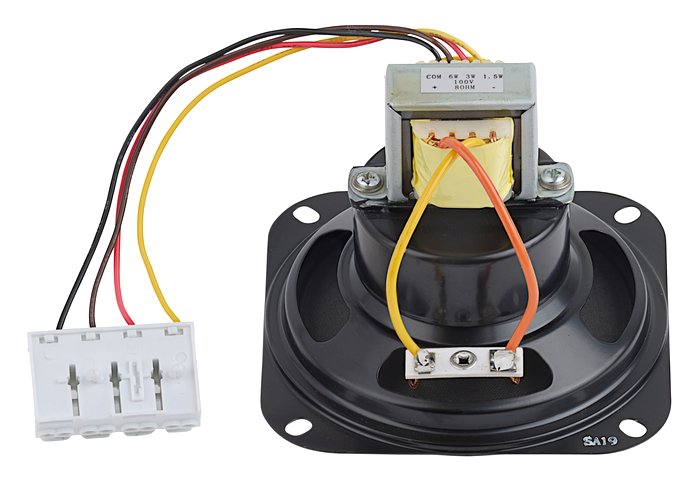

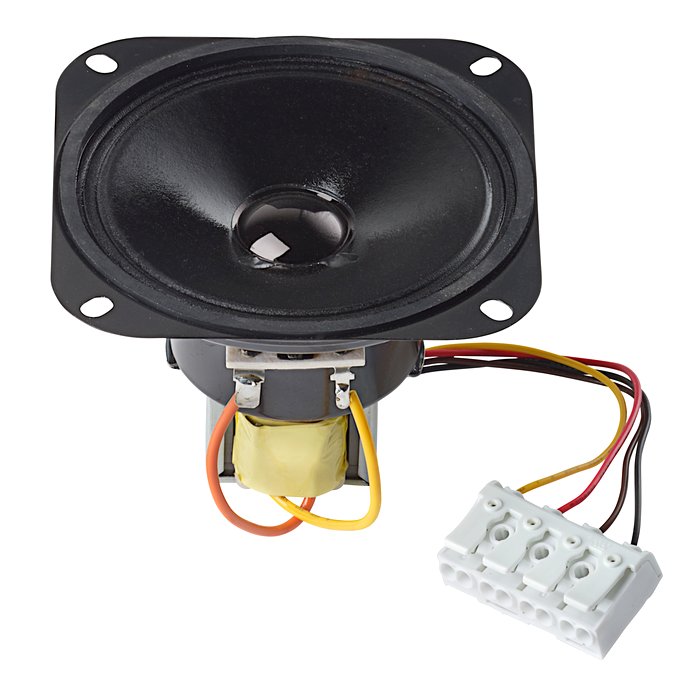

    Visaton R 10 SC - 100 V Magnetically shielded 10 cm (4”) fullrange speaker Visaton R 10 SC - 100 V Magnetically shielded 10 cm (4”) fullrange speaker
    Visaton R 10 SC - 100 V Magnetically shielded 10 cm (4”) fullrange speaker



    Characteristics and Sound Properties

    Magnetically shielded 10 cm (4”) fullrange speaker with high efficiency, balanced frequency response and high frequency rise for good off-axis speech intelligibility. Water-repellent cone and rubber gasket. Especially suitable as speaker for public applications and public transport systems. With 100 V transformer. An Adels-Contact push-terminal block, which can be fixated via catch pins, allows quick and easy connection to a 100 V network.

    Typical applications:-

  • Ceiling- mounted speakers in railway carriages and busses

  • Attributes:-
  • 100 V transformer
  • Functionally at cold according to EN 60068-2-1/EN 50155
  • Cold storage (-40 °C) according to EN 60068-2-1/EN 50155
  • Functionally at damp heat (cyclic) according to EN 60068-2-3/EN 50155
  • Functionally at dry heat according to EN 60068-2-2/EN 50155
  •

    Technical Specifications

    Frequency response 100-13000 Hz
    Mean sound pressure level 90 dB (1 W/1 m)
    Opening angle (-6 dB) 81°/4000 Hz
    Net weight
    0.397 kg
    Transformer matching 6 W/3 W/1.5 W
    Max. sound pressure level 98 dB (6 W/1 m)
    Colour black
    Connections Adels-Contact LK 980-01 RZ/4
    Length of cable 0.15 m
    Protective system IP 64 *)IP 67
    Temperature range
    −40 ... 70 °C

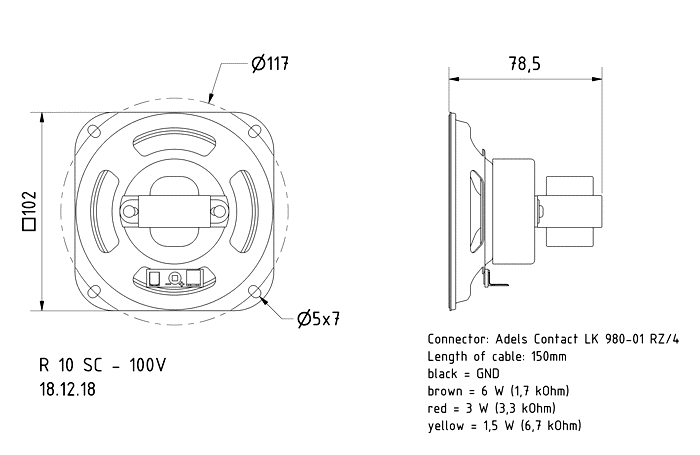

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

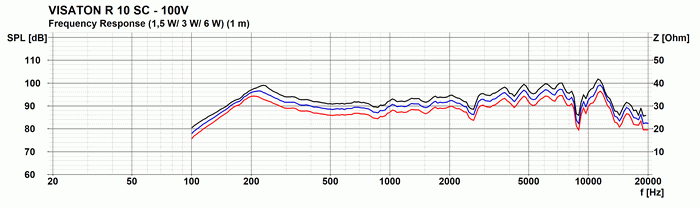

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph

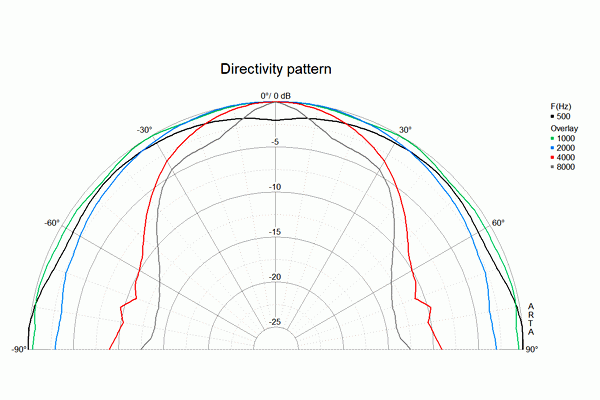

    Directivity Pattern


    Loudspeaker Directivity Pattern (on and off axis response)
