M 10 - 8 Ohm

Thumbnail Filmstrip of M 10 - 8 Ohm Images

    Purchase M 10 - 8 Ohm

    SKU: V-9089-M10 M 10 - 8 Ohm

    $31.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - M 10 - 8 Ohm Midrange Driver
    Art. No. 9089

    Visaton M10 - 8 Ohm Midrange Driver.
    Visaton M10 - 8 Ohm Midrange Driver



    Characteristics and Sound Properties
    100 mm (4") cone midrange driver for the midrange band between 1000 and 5000 Hz. Due to the enclosed rear no separate midrange housing construction is necessary. Very good price/performance ratio.



    Technical Specifications

    Nominal power handling with high pass 80 W
    (12 dB/Oct.; 800 Hz)
    Peak power handling with high pass 100 W
    (12 dB/Oct.; 800 Hz)
    Nominal impedance Z 8 Ohm
    Frequency response 450–13000 Hz
    Mean sound pressure level 90dB (1W/1m)
    Opening angle (-6 dB) 90°/4000 Hz
    Resonance frequency fs 700 Hz
    Magnetic induction 0.9 T
    Magnetic flux 230 µWb
    Voice coil diameter 20 mm
    Height of front pole plate 3 mm
    Height of winding 6 mm
    Excursion limit ±2 mm
    Net weight 0.33 kg
    Cutout diameter 95 mm

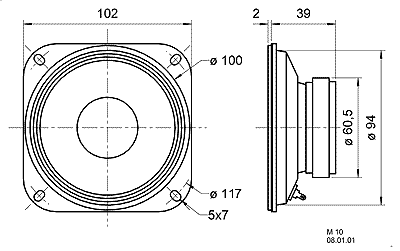

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

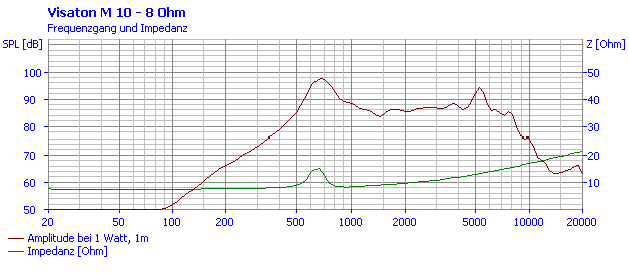

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

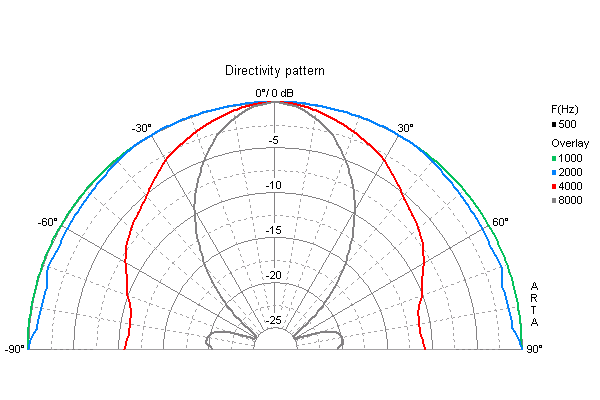

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
