KT 100 V - 4 Ohm

Thumbnail Filmstrip of KT 100 V - 4 Ohm Images

    Purchase KT 100 V - 4 Ohm

    SKU: V-9070-KT100V KT 100 V - 4 Ohm

    $52.00 each
    Quantity in Basket:  None







    Visaton Speaker Driver - KT 100 V - 4 Ohm 10cm (4") Woofer
    Art. No. 9070

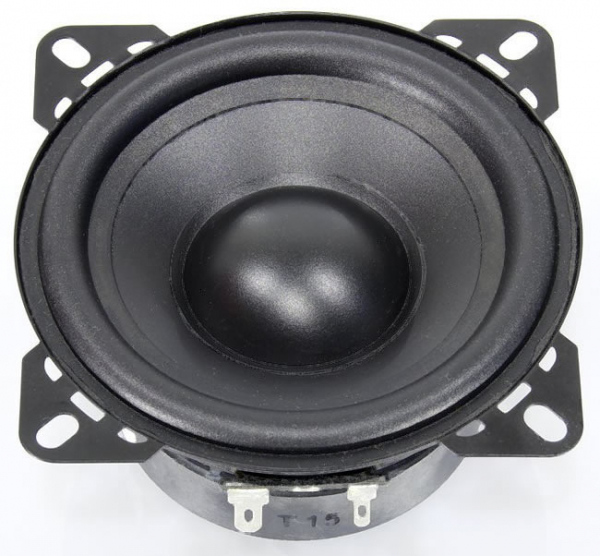

    Visaton KT100V 4 Ohm 10cm Woofer (4").

    Visaton KT100V 4 Ohm 10cm Woofer (4") rear view.
    Visaton KT100V 4 Ohm 10cm Woofer (4")



    Characteristics and Sound Properties
    10 cm (4") woofer with low resonant frequency and compact size. Large strokes possible due to elastic rubber surround and deep magnet while noise is minimized through venting of air gap and t-yoke. Simple basket for various installation possibilities.



    Technical Specifications

    Rated power 25 W
    Maximum power 40 W
    Nominal impedance Z 4 Ohm
    Frequency response
    32–9500 Hz
    Mean sound pressure level 80 dB (1 W/1 m)
    Resonance frequency fs 37 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 25 mm
    Height of winding 7 mm
    Cutout diameter 92 mm
    Net weight 0.466 kg
    DC resistance Rdc 3.6 Ohm
    Mechanical Q factor Qms 2.22
    Electrical Q factor Qes 0.54
    Total Q factor Qts 0.43
    Equivalent volume Vas 9.8 litres
    Effective piston area Sd 54.1 cm2
    Dynamically moved mass Mms 7.5 grams
    Force factor Bxl 3.43 Tm
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
