W 200 S - 8 Ohm

Thumbnail Filmstrip of W 200 S - 8 Ohm Images

    Purchase W 200 S - 8 Ohm

    SKU: V-9030-W200S W 200 S - 8 Ohm

    $122.00 each
    Brand: Visaton
    Shipping Weight: 3.01 kg
    Quantity in Basket:  None







    Visaton Speaker Driver - W 200 S - 8 Ohm HiFi Woofer
    Art. No. 9030

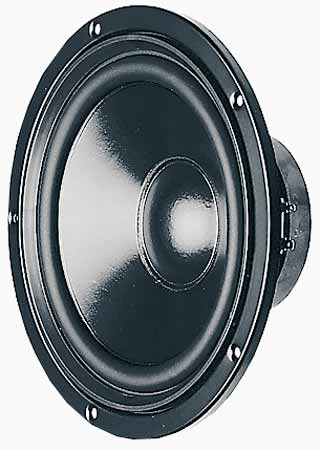

    Visaton W200S - 8 Ohm Woofer.
    Visaton W200S - 8 Ohm Woofer.



    Characteristics and Sound Properties
    20 cm (8") HiFi woofer with strong drive, extended rear pole plate and 35 mm voice-coil for high power handling. Elastic rubber surround and coated paper cone.



    Technical Specifications

    Rated power 75 W
    Maximum power 115 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu-6000 Hz
    Mean sound pressure level 88 dB (1W/1m)
    Opening angle (-6 dB) 48°/4000 Hz
    Excursion limit ± 10 mm
    Resonance frequency fs 30 Hz
    Magnetic induction 1.1 T
    Magnetic flux 600 µWb
    Height of front pole-plate 5 mm
    Voice coil diameter 35 mm
    Height of winding 12 mm
    Cutout diameter 184 mm
    Net weight 1.5 kg
    DC resistance Rdc 6.0 Ohm
    Mechanical Q factor Qms 3.59
    Electrical Q factor Qes 0.36
    Total Q factor Qts 0.33
    Equivalent volume Vas 70 litres
    Effective piston area Sd 214 cm2
    Dynamically moved mass Mms 26 grams
    Force factor Bxl 9.0 Tm
    Inductance of the voice coil L 2.2 mH



    Recommended Cabinet Sizes

    Volume / Principle BR Port fb fc / QTC
    15 litre / closed - - 70 Hz / 0.7
    20 litre / bass reflex BR 19.24 (length 14 cm) 45 Hz -
    30 litre / bass reflex BR 19.24 (length 11 cm) 39 Hz -
    50 litre / bass reflex BR 15.34 (length 13 cm) 33 Hz -
    fb = Enclosure resonance (bass reflex system)
    fc = System resonance (sealed box system)
    QTC = The system's Q at resonance (fc)



    Driver Dimensions

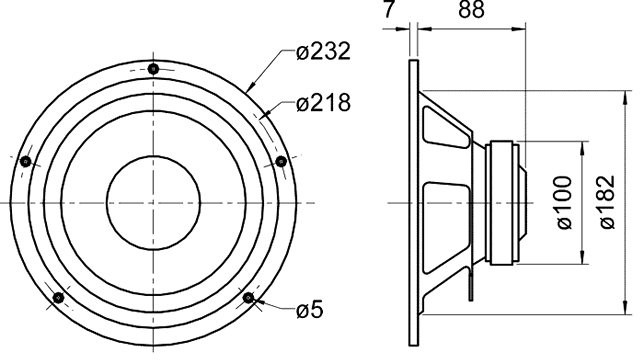

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

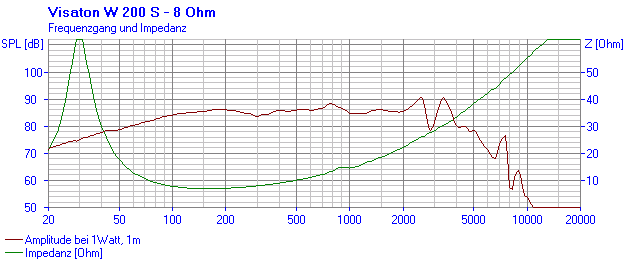

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

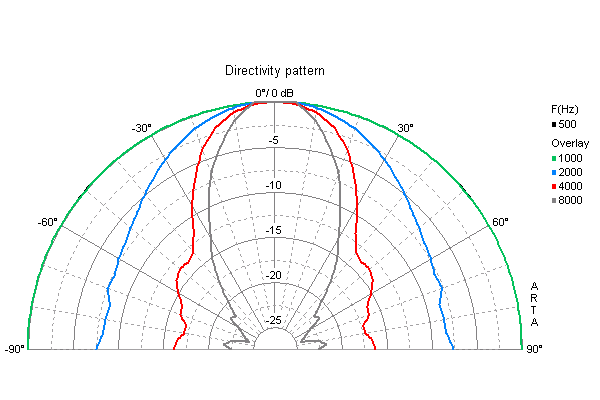

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
