    Visaton Speaker Driver - W 100 S - 8 Ohm HiFi Low-Midrange Driver
    Art. No. 9021

    Visaton W100S - 8 Ohm HiFi low-mid range driver.
    Visaton W100S - 8 Ohm HiFi Low-Midrange Driver



    Characteristics and Sound Properties
    10 cm (4") HiFi low-midrange driver with coated paper cone, elastic rubber surround and 20 mm voice-coil. Suitable as woofer in mini-speaker systems and due to the very balanced frequency response especially suitable as low-midrange driver in 3-way speakers and in subwoofer/satellite systems.



    Technical Specifications

    Rated power 30 W
    Maximum power 50 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu–15000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 86°/4000 Hz
    Excursion limit ± 4 mm
    Resonance frequency fs 63 Hz
    Magnetic induction 1 T
    Magnetic flux 250 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 20 mm
    Height of winding 8 mm
    Cutout diameter 94 mm
    Net weight 0.49 kg
    DC resistance Rdc 6.7 Ohm
    Mechanical Q factor Qms 2.74
    Electrical Q factor Qes 0.67
    Total Q factor Qts 0.54
    Equivalent volume Vas 5.41 litres
    Effective piston area Sd 53 cm2
    Dynamically moved mass Mms 4.7 grams
    Force factor Bxl 4.29 Tm
    Inductance of the voice coil L 0.9 mH



    Recommended Cabinet Sizes

    Volume / Principle BR Port fb fc / QTC
    4 litre / closed - - 96 Hz / 0.82
    5 litre / bass reflex BR 6.8 (length 6 cm) 70 Hz -
    10 litre / bass reflex BR 6.8 (length 5 cm) 56 Hz -
    fb = Enclosure resonance (bass reflex system)
    fc = System resonance (sealed box system)
    QTC = The system's Q at resonance (fc)



    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

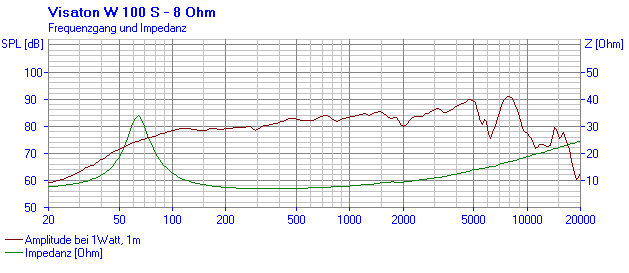

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
