SKU: V-8053-SC59FLX SC 5.9 FLX - 8 Ohm

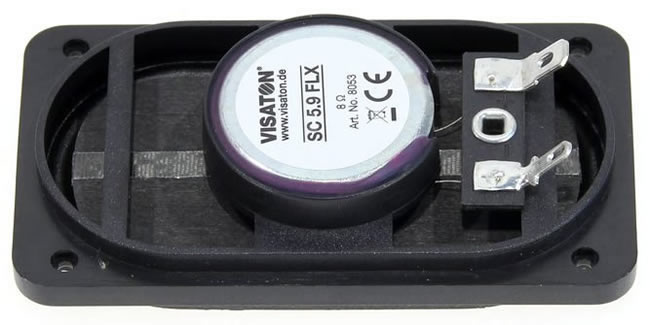

Visaton Speaker Driver - SC 5.9 FLX - 8 Ohm Full-Range
Art. No. 8053

Visaton SC 5.9 FLX - 8 Ohm Fullrange

Characteristics and Sound Properties

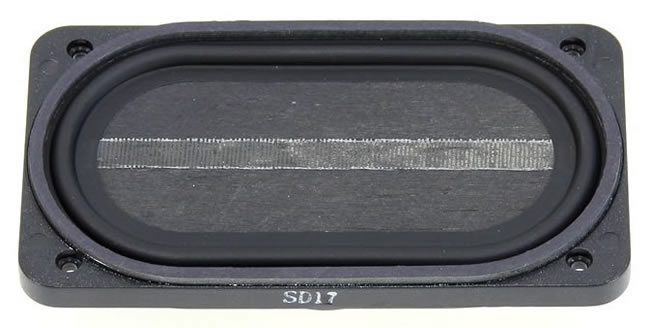

5 x 9 cm (2" x 3.5") full-range speaker with wooden cone and stable plastic basket. Flat and lightweight design because of neodymium. The cooperation of the separate components leads to a very linear frequency response up to deepest frequencies by way of comparison, so that the loudspeaker can be also used in miniature hi-fi speakers.

Technical Specifications

Rated power	4 W
Maximum power	5 W
Nominal impedance Z	8 Ohm
Frequency response	85−20000 Hz
Mean sound pressure level	82 dB (1W/1m)
Resonance frequency fs	141 Hz
Magnetic induction	1.15 T
Magnetic flux	184 uWb
Height of front pole-plate	2 mm
Voice coil diameter	25.5 mm
Height of winding	1.8 mm
Net weight	60 g
DC resistance Rdc	7.1 Ohm
Mechanical Q factor Qms	3.16
Electrical Q factor Qes	2.55
Total Q factor Qts	1.41
Equivalent volume Vas	0.42 litres
Effective piston area Sd	26.8 cm²
Dynamically moved mass Mms	3.0 g
Protective system	IP 63 *)

*) IP protection class for front side when built into a sealed enclosure

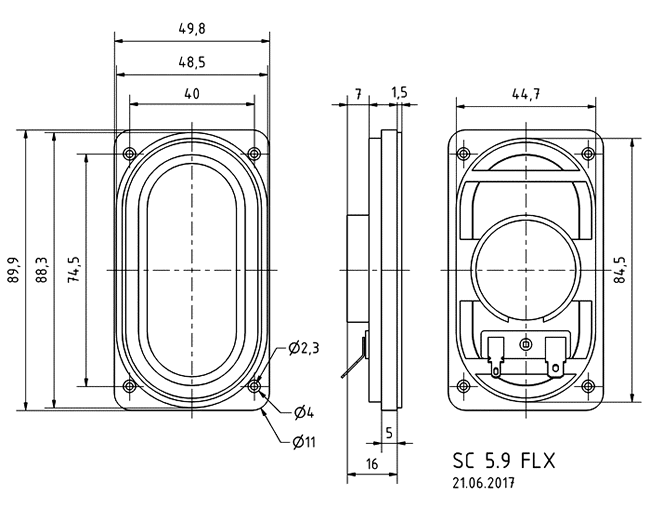

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

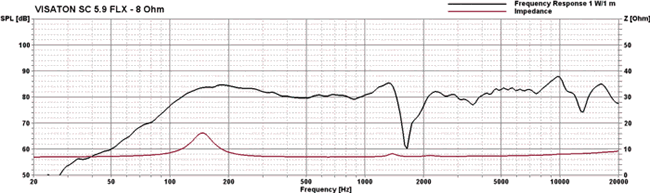

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph
