DR 45 N - 8 Ohm

Thumbnail Filmstrip of DR 45 N - 8 Ohm Images

    Purchase DR 45 N - 8 Ohm

    SKU: V-6060-DR45N DR 45 N - 8 Ohm

    $645.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DR 45 N - 8 Ohm Professional Compression Driver
    Art. No. 6060

    Visaton DR45N - 8 Ohm
    DR45N - 8 Ohm rear view.
    Visaton DR45N - 8 Ohm



    Characteristics and Sound Properties
    Professional 1" driver with titanium dome, in conjunction with the exponential horn system M 300 and AD 25 H as midrange driver above 800 Hz. The 40 mm aluminium-voice-coil and the heavy duty magnet drive are making this system suitable for professional horn-driver units with the required high efficiency and high power handling. The very linear frequency response of this horn driver unit is also matching the demands of highly professional high end applications.



    Technical Specifications

    Nominal power handling with high pass 100 W (12 dB/Oct.; 1000 Hz)
    Peak power handling with high pass 150 W (12 dB/Oct.; 1000 Hz)
    Nominal impedance Z 8 Ohm
    Frequency response
    500–12000 Hz
    Mean sound pressure level 102 dB (1W/1m)
    Resonance frequency fs 600 Hz
    Magnetic induction 1.55 T
    Magnetic flux 90 µWb
    Voice coil diameter 40 mm
    Net weight 2.8kg
    DC resistance Rdc 6.2 Ohm
    Inductance of the voice coil L 0.1 mH

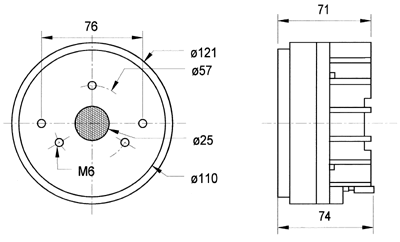

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

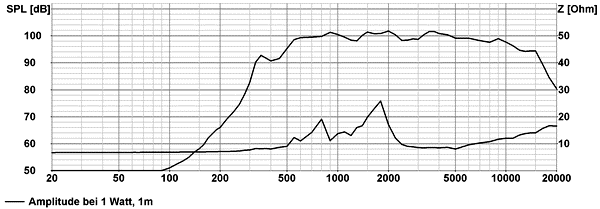

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

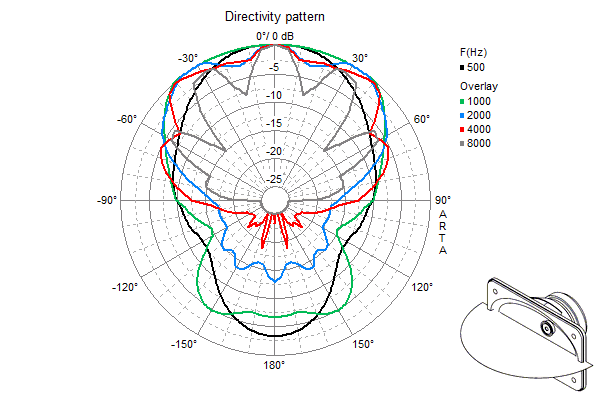

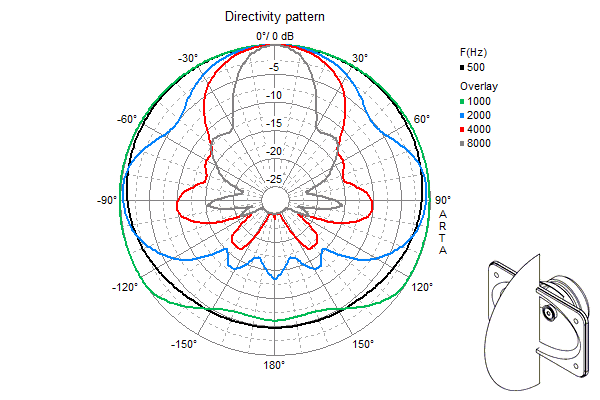

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    DR45N 8 Ohm Visaton Driver Directivity Pattern
    Loudspeaker Directivity Pattern (on and off axis response)
