SKU: V-5183-ST77-Terminal Speaker Terminal Round ST-77

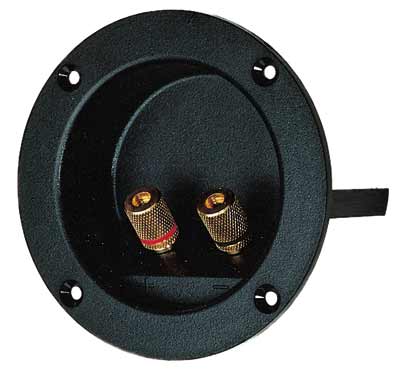

Visaton ST 77 Round Speaker Terminal with Gold-Plated Binding Posts
Art. No. 5183

Overview
The Visaton ST-77 is a flush-mounting round speaker cup designed for DIY loudspeaker projects, custom cabinet builds, and speaker repairs. Equipped with robust, gold-plated screw-type binding posts, it ensures high conductivity, corrosion resistance, and low signal loss. The rear of the cup includes two integrated mounting flanges designed to directly hold a crossover printed circuit board (PCB), making internal wiring neat and straightforward, otherwise you can directly connect wires to the rear of the terminals.

Key Features

• Gold-plated metal binding posts for optimal signal transfer and durability
• Accepts bare speaker wire, spade connectors, or standard 4 mm banana plugs
• Integrated rear mounting flanges to secure a crossover PCB directly to the terminal cup
• Flush-mount recessed round profile for a clean, professional enclosure finish
• High-impact, durable plastic construction

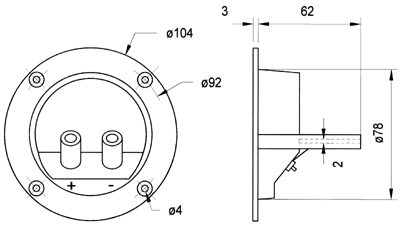

Technical Specifications

• Cutout Diameter: 78 mm
• Terminal Type: Round recessed cup
• Connectors: Gold-plated screw-terminal five-way binding posts
• Internal Mounting: PCB mounting flanges included

Application & Installation Notes

• Cabinet Mounting: Requires a standard 78 mm circular cutout in the rear speaker panel. Secure the cup using wood screws around the outer rim.
• Direct Wiring (Standard Setup): For standard builds without a PCB, simply solder or use crimps on your internal speaker wire directly to the rear solder tabs on the back of the binding posts before securing the cup to the cabinet.
• Connection Flexibility: The front binding posts allow easy hookup of external speaker cable via banana plugs or clamped bare wire.
• PCB Integration: Internal crossover networks can be mounted directly to the rear flanges on the back of the terminal cup, eliminating loose internal wiring and streamlining assembly.
