SKU: V-5182-BT9575-Terminal Speaker Terminal Bi-Wire Rectangular

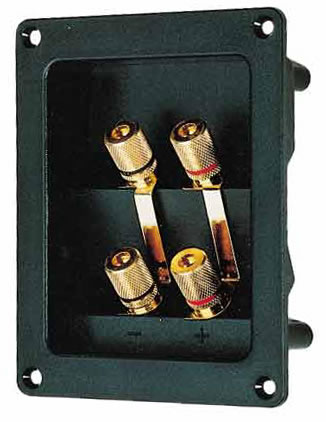

Visaton BT 95/75 Bi-Wire Loudspeaker Terminal
Art. No. 5182

Description
Upgrade your custom speaker builds or enclosure upgrades with the Visaton BT 95/75 bi-wire loudspeaker terminal. Engineered for high-performance audio applications, this high-quality double terminal plate features four gold-plated binding posts connected by removable gold-plated brass bridges. This versatile design allows for conventional single-cable wiring, bi-wiring (separating high and low-frequency signal paths), or bi-amping (driving driver sections with dedicated amplifiers) to maximise acoustic detail and minimise cross-talk.

Constructed from durable, impact-resistant black plastic, the heavy-duty gold-plated binding posts accommodate large-gauge bare speaker wire, spade connectors, pins, or standard 4mm banana plugs. Additionally, the rear assembly includes four integrated mounting flanges designed specifically for direct, secure mounting of a crossover PCB directly behind the terminal plate if wanted, or you can wire directly to your crossover.

Features & Highlights:

• Bi-Wiring & Bi-Amping Capable: Equipped with dual pairs of terminals and removable gold-plated jumpers for flexible system configuration.
• Gold-Plated Connectors: High-grade gold plating on binding posts and bridge jumpers ensures optimal signal transfer and long-term corrosion resistance.
• Versatile Connection Options: Accepts bare wire, spade lugs, pins, and 4mm banana plugs.
• Integrated PCB Mounting: Built-in internal mounting flanges allow direct attachment of crossover printed circuit boards.

Technical Specifications:

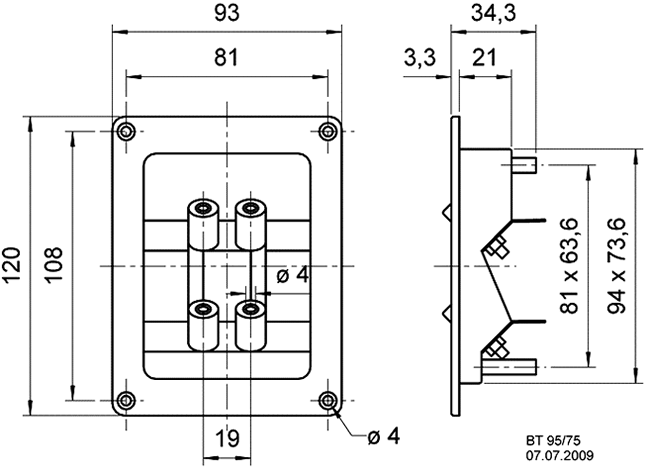

• Cutout Dimensions: 95 mm x 75 mm
• Terminal Type: Double / Bi-Wiring Binding Posts
• Contact Plating: Gold-Plated
• Connector Compatibility: Bare wire, spade connectors, pins, 4mm banana plugs
