    Visaton Speaker Driver - WL 25.20 EV - 100 V Wall Mounted Speaker
    Art. No. 50373

    Visaton WL25.20EV - 100 V Wall Mounted Speaker

    Visaton WL25.20EV - 100 V Wall Mounted Speaker - rear view.

    Visaton WL25.20EV - 100 V Wall Mounted Speaker



    Characteristics and Sound Properties

    Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with a full range driver and a 100 V transformer. Clear speech reproduction properties. Connection to the 100 volt network and level trimming by means of screw terminal.

    Typical applications:-
    • Wall-mounted speaker for evacuation systems
    • Horizontal and vertical installation at walls or ceilings
    Attributes:-
    • Certified according to EN 54-24
    • Cabinet made of flame-retardant plastics according to UL 94: 5VB



    Technical Specifications

    Transformer matching 6 W / 3 W / 1.5 W (100 V)
    Frequency response 120–17000 Hz
    Mean sound pressure level 85 dB (6 W/1 m)
    Max. sound pressure level
    92 dB (6 W/1 m)
    Dispersion angle (-6 dB) 125° hor. (A)
    87° vert. (B) / 4000 Hz
    Net weight 1.32 kg
    Colour RAL 9010






    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

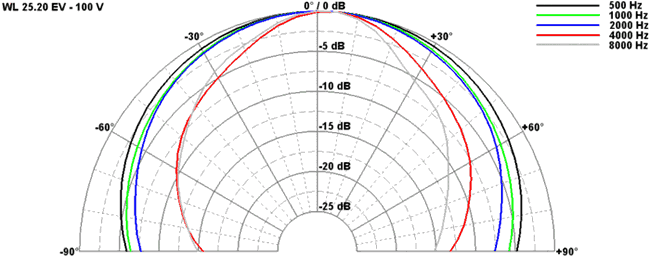

    Loudspeaker Directivity Pattern (on and off axis response) Directivity pattern (A)

    Directivity pattern (A)

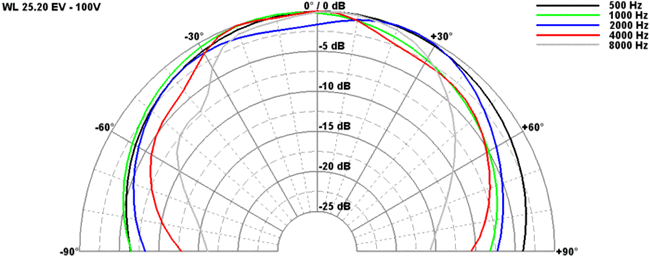

    Vistaon WL 25.20 EV 100V Speaker Directivity Pattern B
    Directivity pattern (B)



    A - Dispersion
    A - Dispersion




    B - Dispersion
    B - Dispersion

    Loudspeaker Directivity Pattern (on and off axis response)
