WL 16 EV 100V

Thumbnail Filmstrip of WL 16 EV 100V Images

    Purchase WL 16 EV 100V

    SKU: V-50370-WL16EV WL 16 EV 100V

    $210.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - WL 16 EV - 100 V Wall Mounted Speaker
    Art. No. 50370



    Visaton WL 16 EV - 100 V Wall Mounted Speaker



    Characteristics and Sound Properties

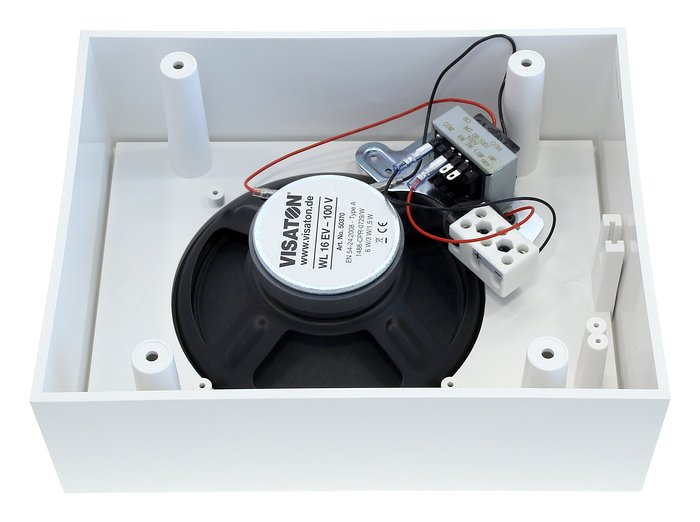

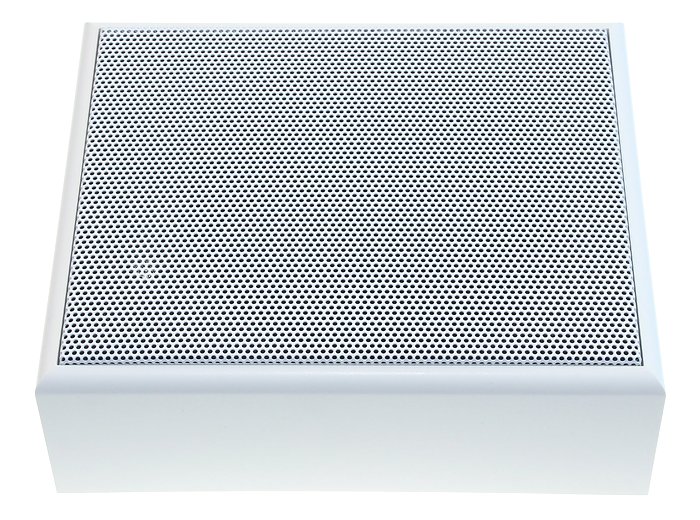

    Wall-mounted speaker with a white plastic cabinet and metal grille. Fitted with a full range driver and a 100 V transformer. Clear speech reproduction properties. Connection to the 100 volt network and level trimming by means of screw terminal.

    Typical Applications:

    • Wall-mounted speaker for evacuation systems
    • Horizontal and vertical installation at walls or ceilings

    Attributes:

    • Certified according to EN 54-24
    • Cabinet made of flame-retardant plastics according to UL 94: V-0
    • Ceramic terminal and thermal fuse





    Technical Specifications

    Nominal impedance Z 1.67 k Ohm/3.33 k Ohm/6.67 k Ohm
    Frequency response 150-20000 Hz
    Mean sound pressure level 92 dB (1 W/1 m)
    Opening angle (-6 dB)
    49° hor./70° vert./4000 Hz
    Net weight 1.6 kg
    Transformer matching 6 W/3 W/1.5 W
    Max. sound pressure level 99 dB (6 W/1 m)
    Colour RAL 9010

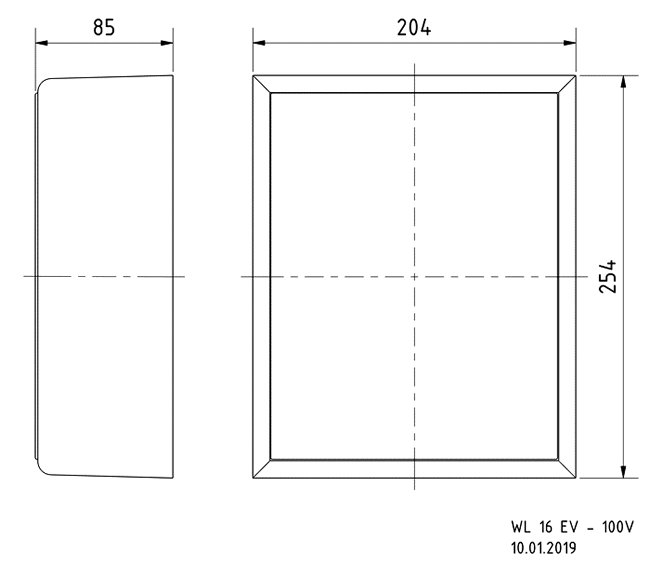

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

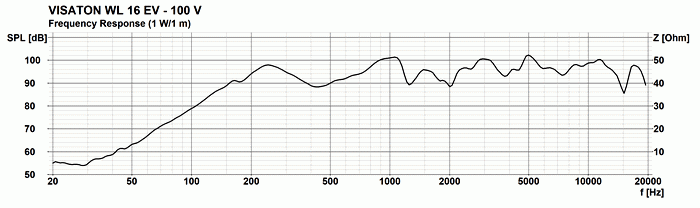

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph

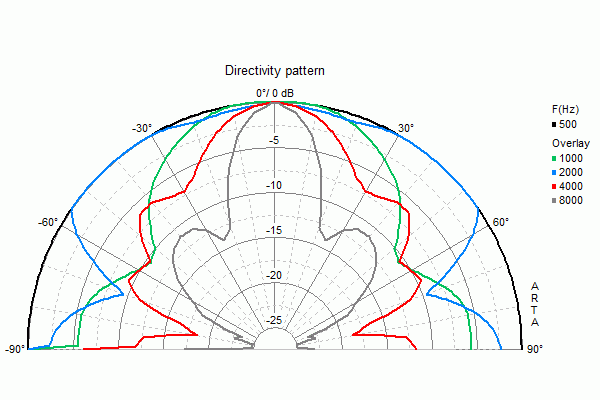

    Directivity Pattern Horizontal

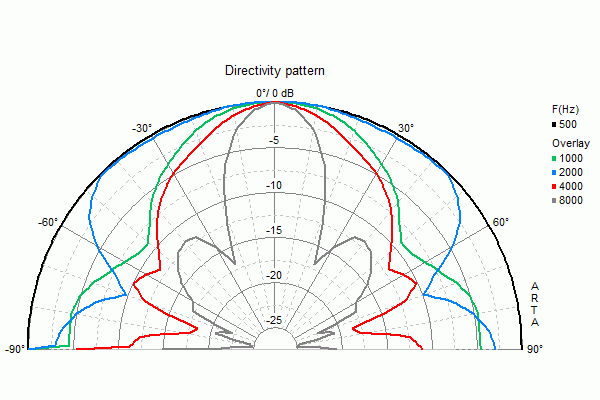

    Directivity Pattern Vertical
