PL 13 - 100V'

Thumbnail Filmstrip of PL 13 - 100V' Images

    Purchase PL 13 - 100V'

    SKU: V-50351-PL13 PL 13 - 100V'

    $129.00 each
    Brand: Visaton
    Quantity in Basket:  None



    2 available.

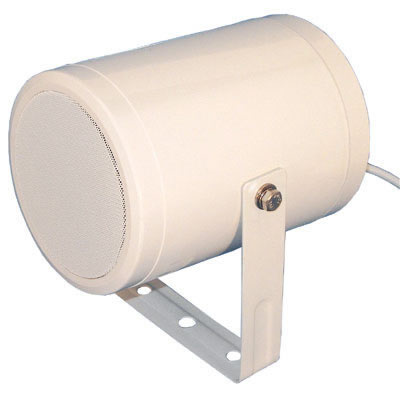

    Visaton Speaker Driver - PL 13 - 100 V Projection Loudspeaker
    Art. No. 50351

    Visaton PL13 - 100V Projeciton Loudspeaker.
    Visaton PL13 - 100V Projection Loudspeaker



    Characteristics and Sound Properties
    Projection loudspeaker with cylindrical plastic housing (ABS) and adjustable fixing bracket. Suitable for wall or ceiling mounting. Fitted with one full-range loudspeaker and 100 V transformer. High level of voice quality.

    Typical applications:-

    - Public address systems in public buildings and factory production halls

    Attributes:-
    - Plastic: ABS (UL 94:HB)
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/ low temperature)
    - UV-resistant
    - 100 V transformer
    - Weather-resistant



    Technical Specifications

    Transformer matching 15; 7.5; 3.75 W
    Sound pressure level 97 dB (1 W/1 m) @ 3260 Hz
    Frequency response 160–15000 Hz
    Mean sound pressure level
    93 dB (1 W/1 m)
    Max sound pressure level 105 dB (15 W/1 m)
    Dispersion angle (-6 dB) 56°/4000 Hz
    Net weight 1.7 kg
    Length of cable 1 m
    Protective system IP 65
    Temperature range −40 ... 80 °C
    Temperature RangeIP 65 Protection Rating

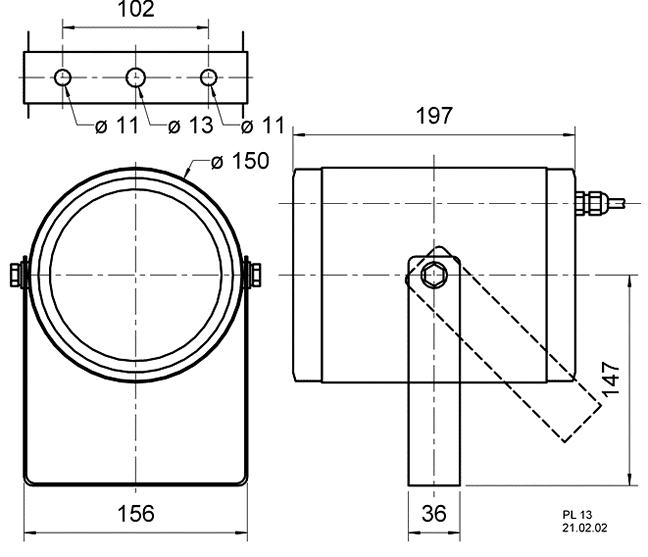

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

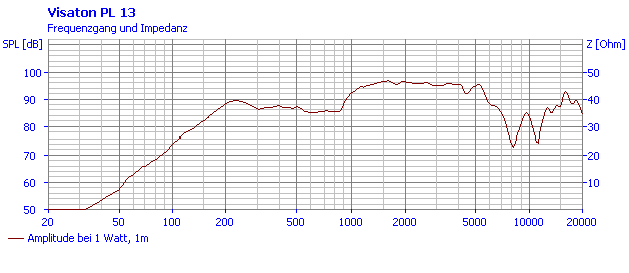

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

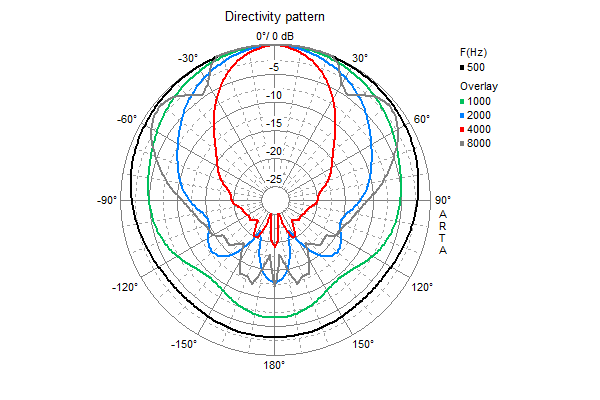

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
