DPS 26 - 100V Dipole Flat Panel Speaker

Thumbnail Filmstrip of DPS 26 - 100V Dipole Flat Panel Speaker Images

    Purchase DPS 26 - 100V Dipole Flat Panel Speaker

    SKU: V-50280-DPS26 DPS 26 - 100V Dipole Flat Panel Speaker

    $955.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DPS 26 - 100V Dipole Flat-Panel Loudspeaker
    Art. No. 50280

    Visaton DPS 26 100 Volt Dipole flat-panel loudspeaker.

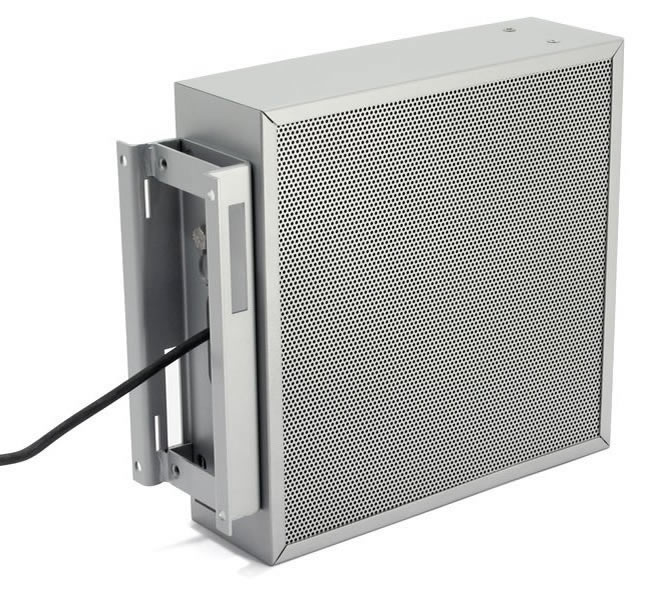

    DPS26 - 100V Dipole Flat Panel Louspeaker Rear View
    Visaton DPS 26 - 100V Dipole Flat-Panel Loudspeaker



    Characteristics and Sound Properties

    26 x 26 cm dipole flat-panel loudspeaker made of corrosion resistant aluminium with weatherproof equipment for outdoor use. The DPS 26 is a passive speaker without power supply, adapted for all applications of speech reproduction (e.g. announcements at railway stations, etc.).

    The optimised directivity pattern and focused sound radiation ensure perfect speech intelligibility while minimizing the disturbance of nearby areas (noise pollution). The clear design line with a square body, simple and variable mounting possibilities as well as thoughtful power taps on the 100 V transformer for easier adjustment complete the advantages.

    Typical Applications:-

  • Public address systems at railway platforms, both indoor and outdoor applications.
  • PA systems for public and private properties were high speech intelligibility in a narrow area and low disturbance of surrounding areas is required.
  • Attributes:-

    • Strong focus of the sound, horizontally and vertically
    • High efficiency
    • Easy mounting with tightening straps (tightening straps not included)
    • Direct electrical connection with multicore cable, housing doesn't need to be opened



    Technical Specifications

    Transformer matching 6 / 3 / 1.5 / 1 / 0.5 / 0.3 W
    Frequency response 200–18000 Hz
    Mean sound pressure level 92 dB (1 W/1 m)
    Max. sound pressure level
    100 dB (6 W/1 m)
    Net weight 3.2 kg
    Dimensions 260 x 260 x 82 mm
    Length of cable 3 m
    Protective system IP 55
    Temperature range -40 - 80 °C
    Colour RAL 9006

    IP 55 Protection Rating Temperature Range -40 - 80 degrees celcius

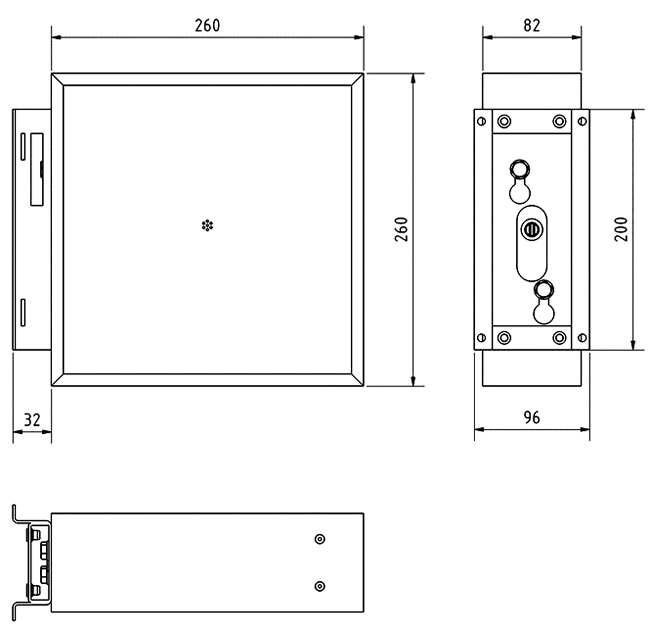

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

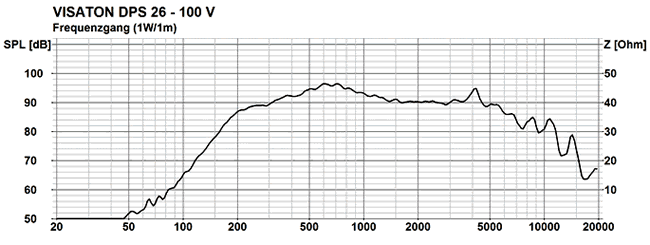

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

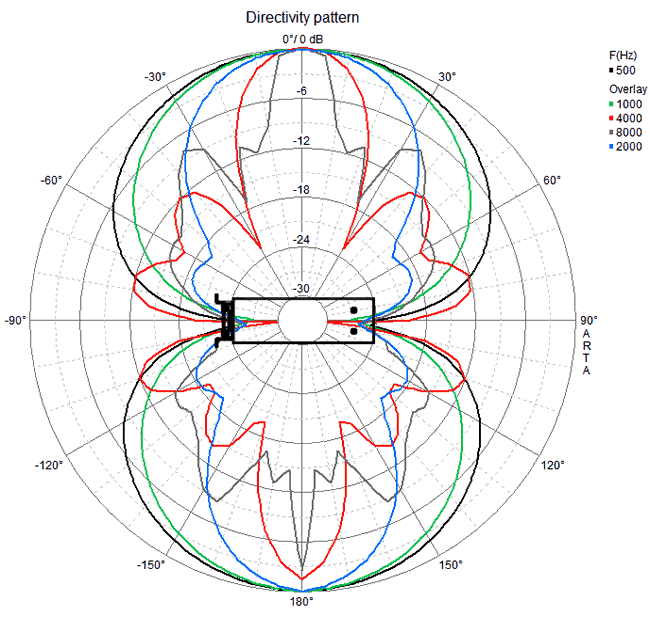

    Loudspeaker Directivity Pattern Horizontal
    Loudspeaker Directivity Pattern Horizontal

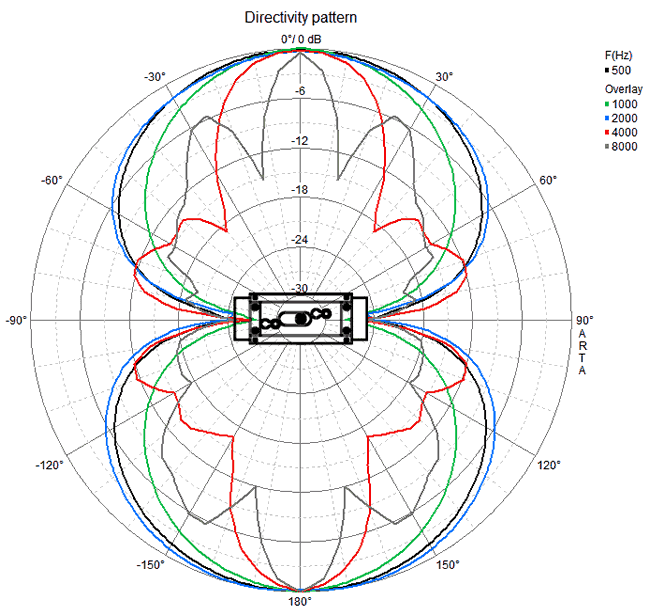

    Driectivity Pattern Vertical DPS 26 100V

    Loudspeaker Directivity Pattern Vertical
