DK 121 FE EB - 8 Ohm

Thumbnail Filmstrip of DK 121 FE EB - 8 Ohm Images

    Purchase DK 121 FE EB - 8 Ohm

    SKU: V-50261-DK121FEEB DK 121 FE EB - 8 Ohm

    $237.00 each
    Quantity in Basket:  None

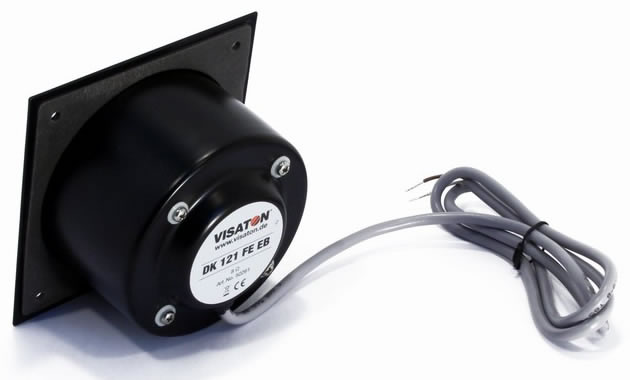

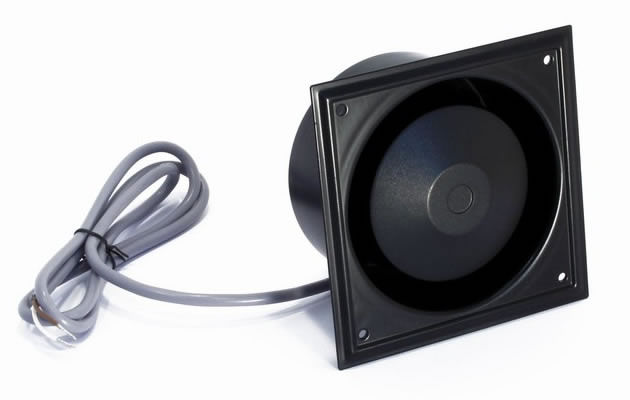

    Visaton Speaker Driver - DK 121 FE EB - 8 Ohm Re-Entrant Horn Speaker
    Art. No. 50261

    Visaton DK121FEEB - 8 Ohm Horn Speaker
    DK121FEEB - 8 Ohm Horn Speaker
    Visaton DK121FEEB - 8 Ohm Re-Entrant Horn Speaker



    Characteristics and Sound Properties
    Built-in horn speaker - low profile. Waterproof design with an impedance of 8 ohms and ferrite magnet. Housing made of black lacquered aluminium, horns made of polypropylene (PP). High IP protection class, high sound pressure and good voice reproduction. Ideal for inconspicuous installation due to the very compact dimensions, e.g. in vehicles. The connection is via a two-core flexible cable (100 cm); certified in accordance to ISO 6722 class B. Cable: FLRYCY 2x 0.75 mm².

    Differences to DK 121 - 8 Ohm:
    - Ferrite magnet
    - Special cable
    - No potential equalisation

    Typical applications:-
    - PA systems in factory halls, railway stations etc.
    -Outdoor PA at railway-vehicles
    - Use in alarm/alert systems

    Attributes:-
    - Weather-proof aluminum cabinet
    - Plastic-insert-cabinet
    - UV-resistant



    Technical Specifications

    Rated power 10 W
    Maximum power 15 W
    Nominal impedance Z 8 Ohm
    Frequency response 620–5000 Hz
    Mean sound pressure level 100 dB (1W/1m)
    Opening angle (-6 dB) 69°/4000 Hz
    Net weight 0.62 kg
    Length of cable 1.0 m
    Protective system IP 67
    Temperature range −25 ... 70 °C
    Temperature RangeProtective system





    Driver Dimensions

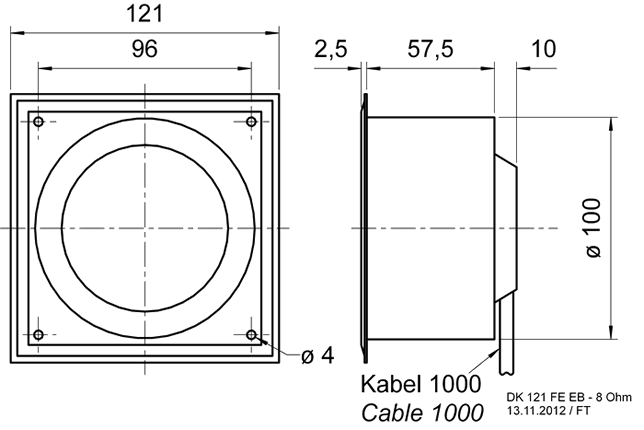

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

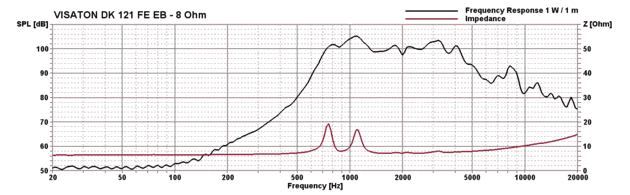

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

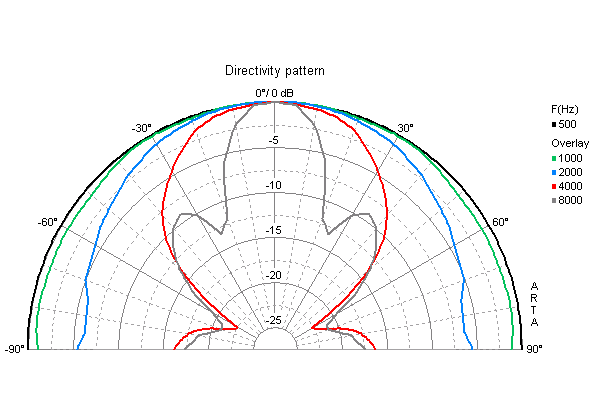

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
