DK 10 MW - 100 V

Thumbnail Filmstrip of DK 10 MW - 100 V Images

    Purchase DK 10 MW - 100 V

    SKU: V-50254-DK10MW DK 10 MW - 100 V

    $275.00 each - special order
    Quantity in Basket:  None







    Visaton Speaker Driver - DK 10 MW - 100 V / 70 V / 8 Ohm Re-Entrant Horn Speaker
    Art. No. 50254

    Visaton DK10MW - 100V / 70V / 8 Ohm Re-Entrant Horn Speaker
    Visaton DK10MW - 100V / 70V / 8 Ohm Re-Entrant Horn Speaker



    Characteristics and Sound Properties
    Re-entrant horn speaker with very high sound pressure level and wide, balanced frequency range which leads to an excellent speech reproduction. Tap selection via rotary switch (100 V / 70 V or 8 Ohm operations possible). Secured against inadvertently switching off. UV-resistant, light grey plastic housing (ABS UL 94: HB). Pivoting V2A/AISI 304 stainless steel bracket for mounting on walls, ceilings, columns etc.



    Technical Specifications

    Rated power 30 W
    Maximum power 60 W
    Transformer matching 100V:
    30 W / 15 W / 7.5 W
    3.75 W / Off / 8 Ohm
    70V:
    15 W / 7.5 W / 3.75 W
    1.87 W / Off / 8 Ohm
    Frequency response
    400–5000 Hz
    Mean sound pressure level 110 dB (1W/1m)
    Max. sound pressure level 125 dB (30 W/1 m)
    Net Weight 2.11 kg
    Protective system IP66
    Temperature Range −30 ... +90 °C

    IP 66

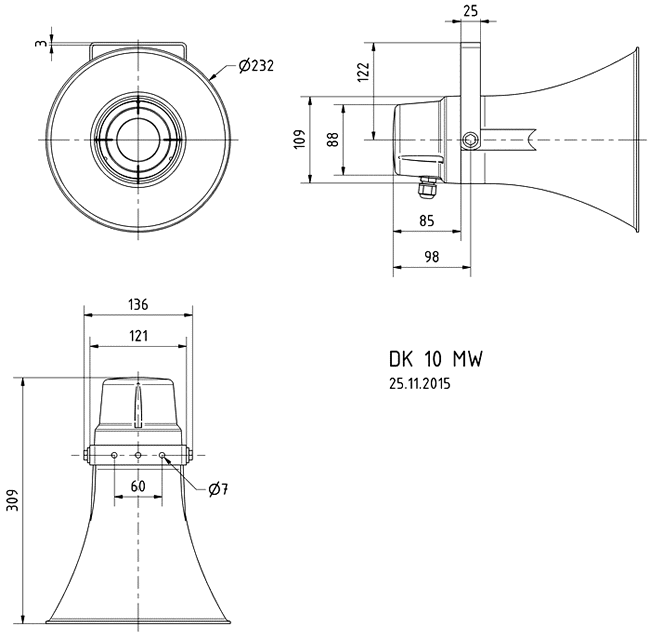

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

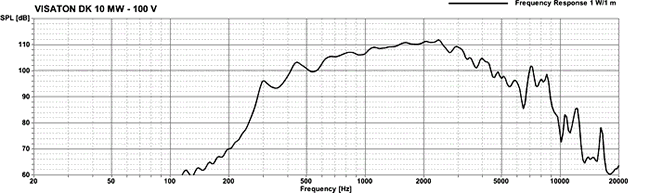

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
