    SKU: V-50252-DK8MW DK 8 MW - 100 V

    $247.00 each
    Brand: Visaton
    Quantity in Basket:  None

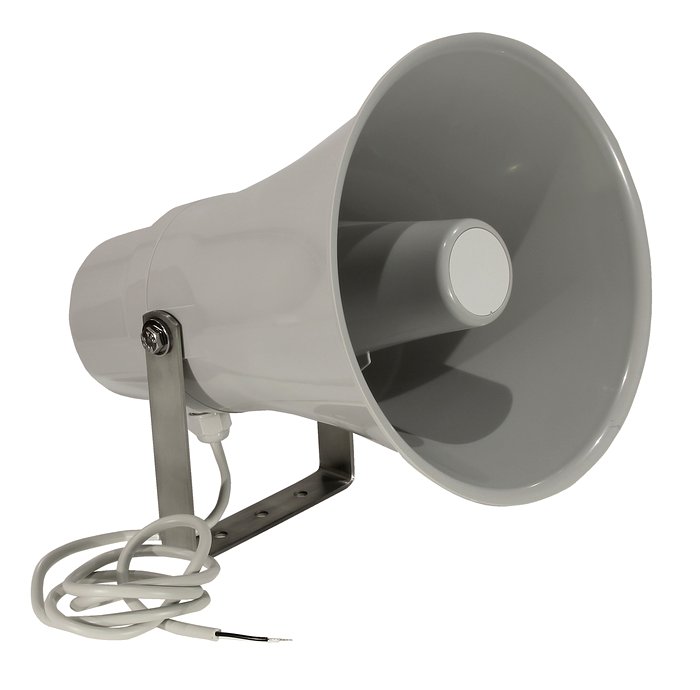

    Visaton Speaker Driver - DK 8 MW - 100 V / 70 V / 8 Ohm Re-entrant Horn Speaker
    Art. No. 50252

    Visaton DK8MW - 100V / 70V / 8 Ohm Re-entrant Horn Speaker.
    Visaton DK8MW - 100V / 70V / 8 Ohm Re-entrant Horn Speaker



    Characteristics and Sound Properties
    Re-entrant horn speaker with very high sound pressure level and wide, balanced frequency range which leads to an excellent speech reproduction. Tap selection via rotary switch (100 V/70 V or 8 Ohm operations possible). Secured against inadvertently switching off. UV-resistant, light grey plastic housing (ABS UL 94: HB). Pivoting V2A/AISI 304 stainless steel bracket for mounting on walls, ceilings, columns etc.



    Technical Specifications

    Rated power 15 W
    Maximum power 30 W
    Transformer Matching 100V:
    15 W / 7.5 W / 3.75 W
    1.87 W / Off / 8 Ohm
    70V:
    7.5 W / 3.75 W / 1.87 W
    0.94 W / Off /8 Ohm
    Frequency response

    450–5500 Hz
    Mean sound pressure level 108 dB (1W/1m)
    Max. sound pressure level 120 dB (15 W/1 m)
    Net weight 1.74 kg
    Protective system IP66
    Temperature range −40 ... +90 °C

    IP 66





    Driver Dimensions

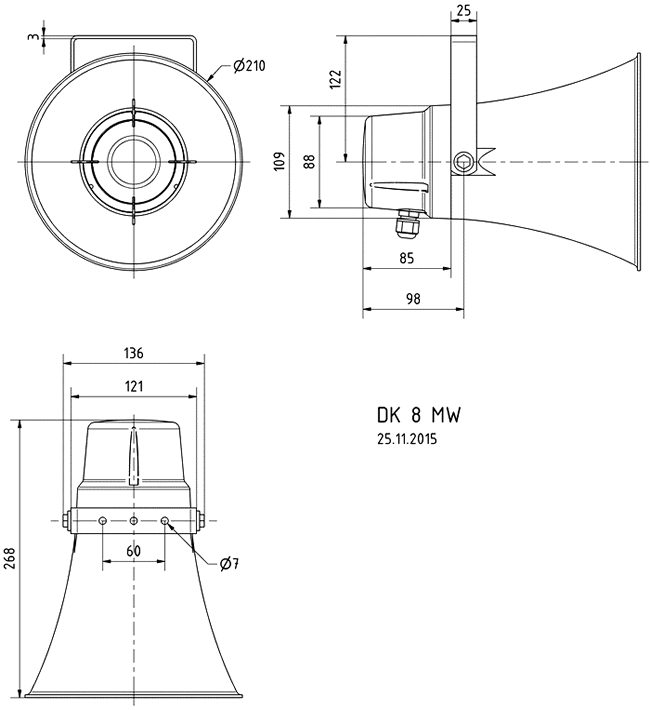

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

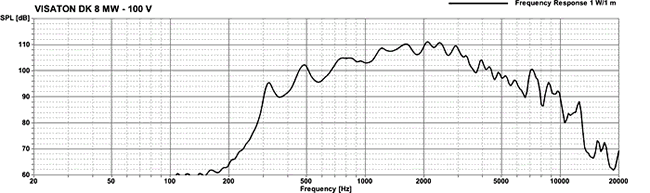

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
