DK 6 MW - 100 V

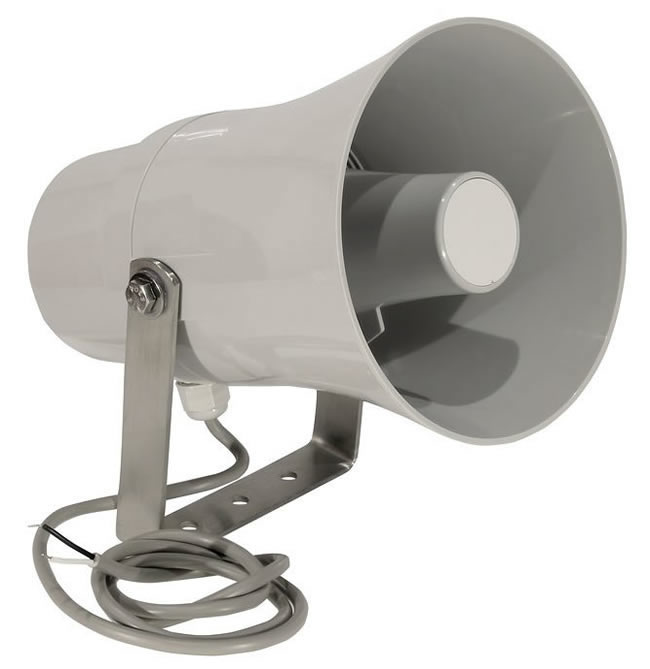

Thumbnail Filmstrip of DK 6 MW - 100 V Images

    Purchase DK 6 MW - 100 V

    SKU: V-50250-DK6MW DK 6 MW - 100 V

    $236.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DK 6 MW - 100 V / 70 V / 8 Ohm Re-entrant Horn Speaker
    Art. No. 50250

    Visaton DK6MW - 100V / 70V / 8 Ohm Re-entrant Horn Speake
    Visaton DK6MW - 100V / 70V / 8 Ohm Re-entrant Horn Speaker



    Characteristics and Sound Properties
    Re-entrant horn speaker with very high sound pressure level and wide, balanced frequency range which leads to an excellent speech reproduction. Tap selection via rotary switch (100 V/70 V or 8 Ohm operations possible). Secured against inadvertently switching off. UV-resistant, light grey plastic housing (ABS UL 94: HB). Pivoting V2A/AISI 304 stainless steel bracket for mounting on walls, ceilings, columns etc.



    Technical Specifications

    Rated power 10 W
    Maximum power 20 W
    Transformer Matching 100 V:
    10 W / 5 W / 2.5 W
    1.25 W / Off / 8 Ohm
    70 V:
    5 W / 2.5 W / 1.25 W
    0.625 W / Off / 8 Ohm
    Frequency response

    400–5500 Hz
    Mean sound pressure level 106 dB (1W/1m)
    Max. sound pressure level 116 dB (10 W/1 m)
    Net weight 1.54 kg
    Protective system IP66
    Temperature range −30 ... +90 °C

    IP 66

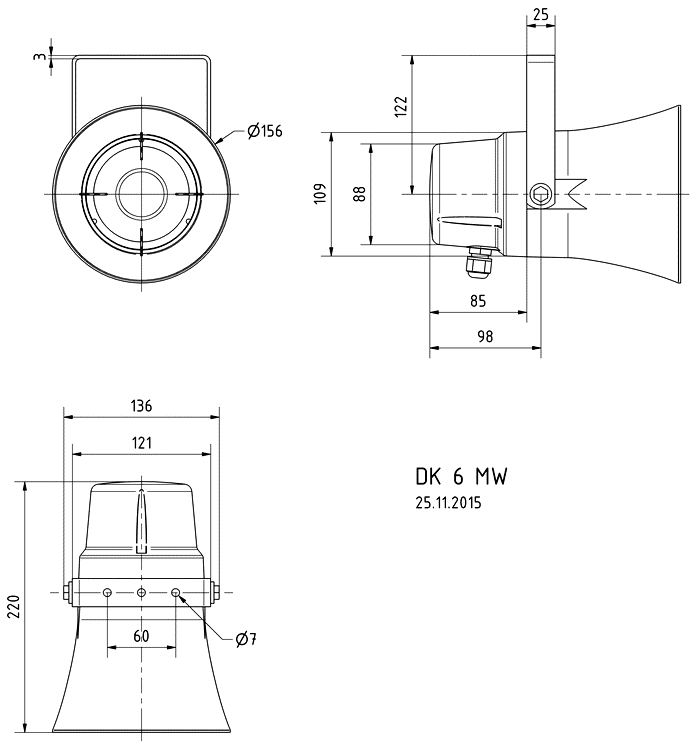

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

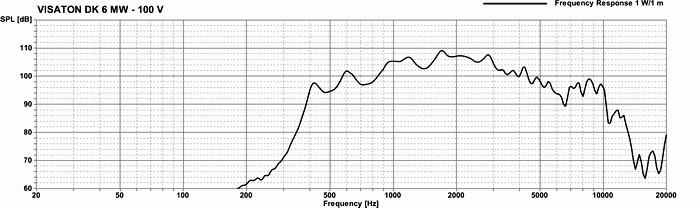

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
