DK 8 D - 100V  20 Ohm

Thumbnail Filmstrip of DK 8 D - 100V 20 Ohm Images

    Purchase DK 8 D - 100V 20 Ohm

    SKU: V-50205-DK8D DK 8 D - 100V 20 Ohm

    $196.00 each
    Brand: Visaton
    Shipping Weight: 3.20 kg
    Quantity in Basket:  None

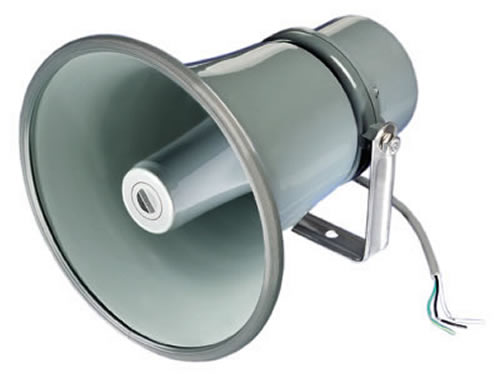

    Visaton Speaker Driver - DK 8 D 100V / 20 Ohm Re-Entrant Horn Speaker
    Art. No. 50205

    Visaton DK8D 100 V / 20 Ohm Re-entrant Horn Speaker.
    Visaton DK8D 100 V / 20 Ohm Re-entrant Horn Speaker



    Characteristics and Sound Properties
    Re-entrant horn speaker with 100V transformer and integrated capacitor for line monitoring by impedance measurement. Five-stage level adjustment for 100V model via knob, in addition 20 Ohm possible. High sound pressure and wide range of frequency response guarantee excellent voice quality. Pivoting metal frame for mounting walls, ceilings, columns etc.

    Typical Applications:-

    • PA systems in factory halls, railway stations etc.
    • Outdoor PA

    Attributes:-

    • Functionally at low temperature according to EN 60068-2-1 (-25 °C; 96 h)
    • Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
    • 100V transformer UV-resistant
    • Integrated capacitor for line monitoring by impedance measurement



    Technical Specifications

    Transformer matching 15 / 10 / 5 / 3 / 1 W
    20 Ohm
    Sound pressure level 107 dB (1 W/1 m) @ 1144 Hz
    Frequency response 400–5000 Hz
    Mean sound pressure level 105 dB (1 W/1 m)
    Max sound pressure level 117 dB (15 W/1 m)
    Opening angle (-6 dB) 42°/4000 Hz
    Net weight 1.4 kg
    Length of cable 0.6 m
    Protective system IP66
    Temperature ragne −25 ... +70 °C
    Colour RAL 7012

    Temperature Range Protective System IP 66

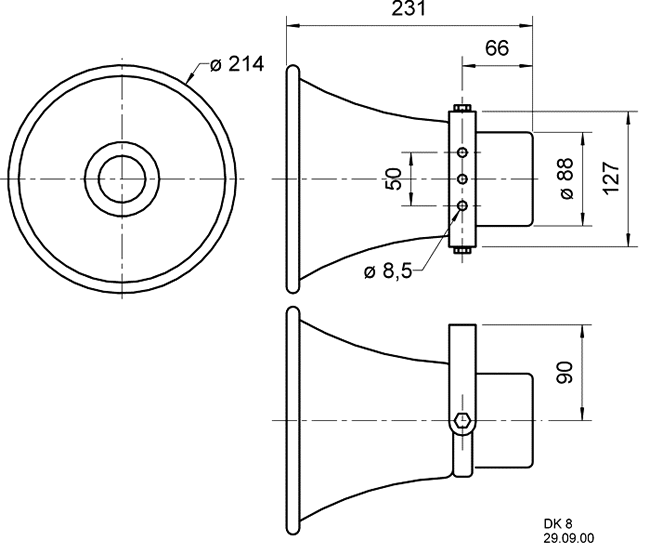

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

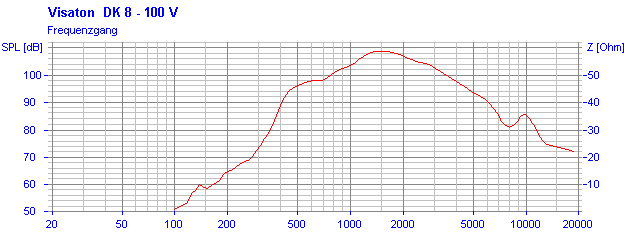

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

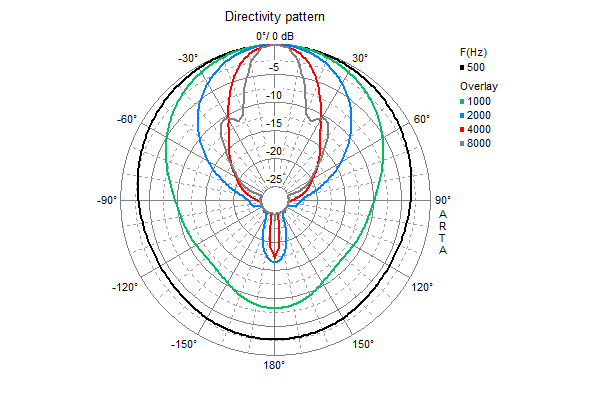

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
