DL 25 - 100 V

Thumbnail Filmstrip of DL 25 - 100 V Images

Purchase DL 25 - 100 V

SKU: V-50168-DL25 DL 25 - 100 V

Name: DL 25 - 100 V
Brand: Visaton
SKU: V-50168-DL25
Price: 425 AUD
Availability: InStock

$425.00 each - special order

Brand: Visaton

Quantity in Basket: None

Qty

Description

Visaton Speaker Driver - DL25 - 100V / * Ohm Ceiling Speaker 25cm 10"
Art. No. 50168

Characteristics and Sound Properties

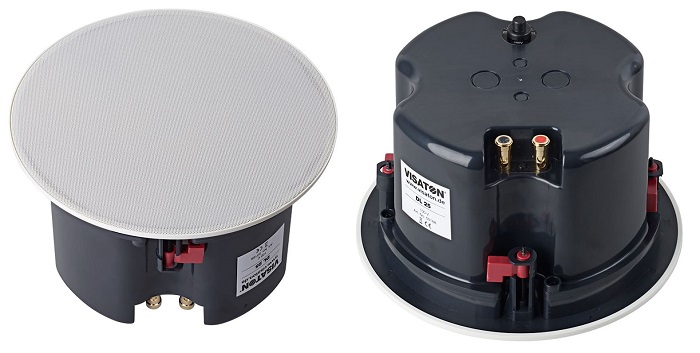

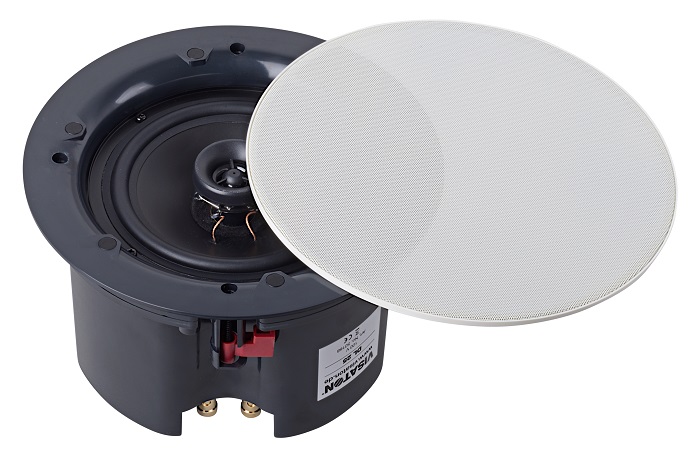

25 cm (10") ceiling speaker equipped with a 13 cm coaxial driver. The four mounting clamps make it easy and quick to install. The magnetic grilles covers the loudspeaker completely and can be removed in one simple step. The speaker is incredibly versatile and can be hooked up with 8 Ohm and 100 V Systems.

Applications:-

For suspended ceilings in shops, living rooms bathrooms etc.
Sound reinforcement of conference rooms
Ceiling speaker
Installation in suspended ceilings for voice and music in hotels and shopping centres

Properties:-

Coaxial speaker
Plastic housing and metal grille

Technical Specifications

Rated power	20 W
Maximum power	30 W
Nominal impedance Z	8 Ohm

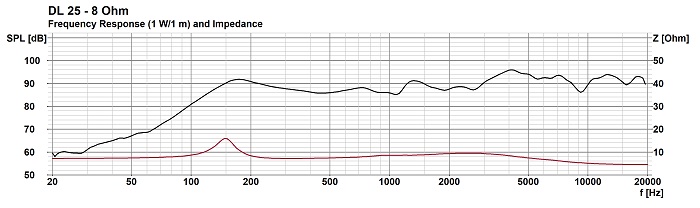

Frequency response	90 - 20000 Hz
Mean sound pressure level	90 dB

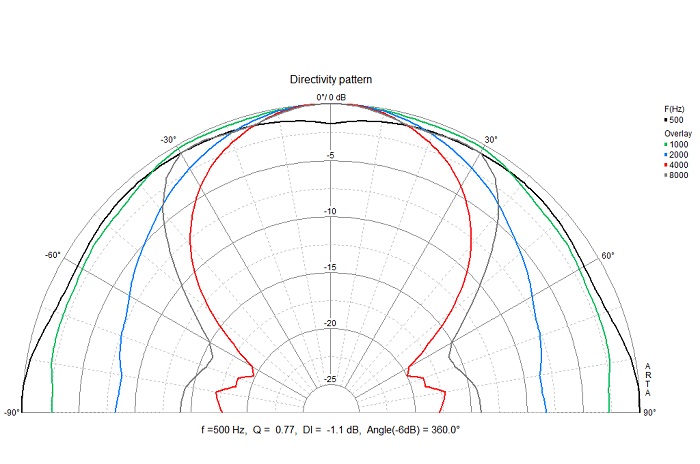

Opening angle (-6 dB)	70°/ 4000 Hz
Resonance frequency fs	150 Hz
Net weight	2 kg
Transformer matching	20 W; 10 W; 5 W; 2.5 W 8 Ohm
Sound pressure level	96 dB (1 W/1 m) @ 4114 Hz
Max sound pressure level	103 dB (20 W/1 m)
Colour	RAL 9010

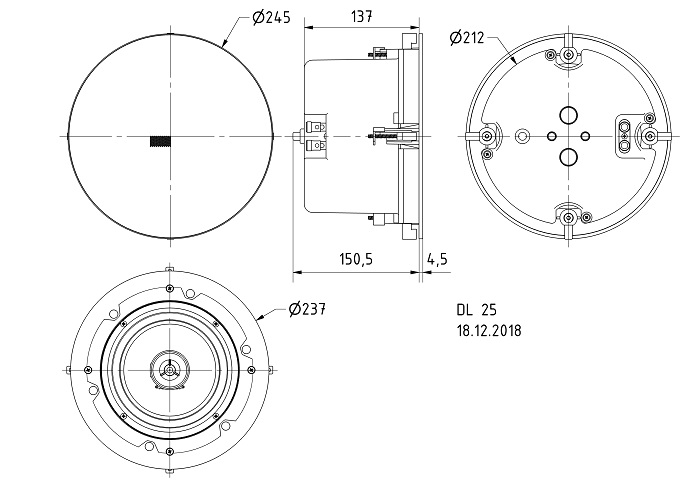

Mounting depth	150.5 mm
Diameter	245 mm
Cutout diameter	212 mm
Connections	Spring Terminals
Temperature range	-40 ... 70 °C
