DL13-2 ES - 8 Ohm

Thumbnail Filmstrip of DL13-2 ES - 8 Ohm Images

    Purchase DL13-2 ES - 8 Ohm

    SKU: V-50163-DL132ES-8 DL13-2 ES - 8 Ohm

    $190.00 each
    Brand: Visaton
    Quantity in Basket:  None

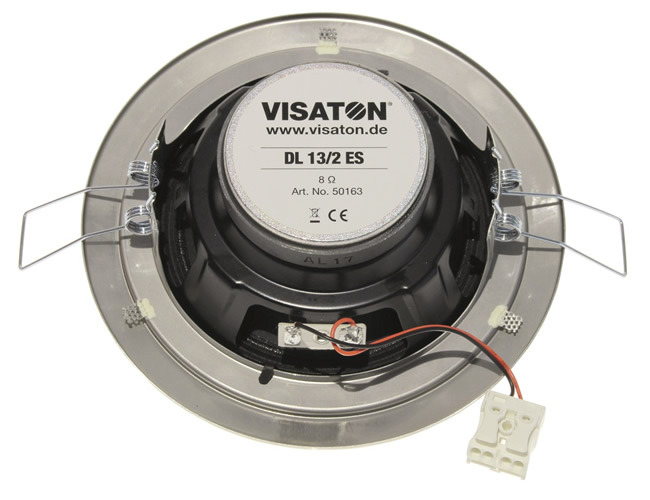

    Visaton Speaker Driver - DL13/2 ES - 8 Ohm HiFi Ceiling Speaker
    Art. No. 50163



    Visaton DL13/2 ES- 8 Ohm



    Characteristics and Sound Properties
    13 cm (5") HiFi-ceiling-mounted speakerĀ made of stainless steel with brushed finish. Equipped with a 2-way coaxial driver. Suitable for use in all types of hollow ceiling. Easy fitting in round cut-out using spring arms. A push-terminal block allows quick and easy connection. A compact solution for home and professional use with good sound qualities.

    Typical applications
    - For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
    - suitable for outdoor applications

    Attributes
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)



    Technical Specifications

    Rated power 30 W
    Maximum power 50 W
    Nominal impedance Z 8 Ohm
    Frequency response 100-20000 Hz
    Mean sound pressure level 89 dB
    Resonance frequency fs 150 Hz
    Net weight 0.61 kg
    Length of cable 0.1mm
    Cutout diameter 150 mm
    Protective system IP54*)
    Temperature range 40 ... 110 °C

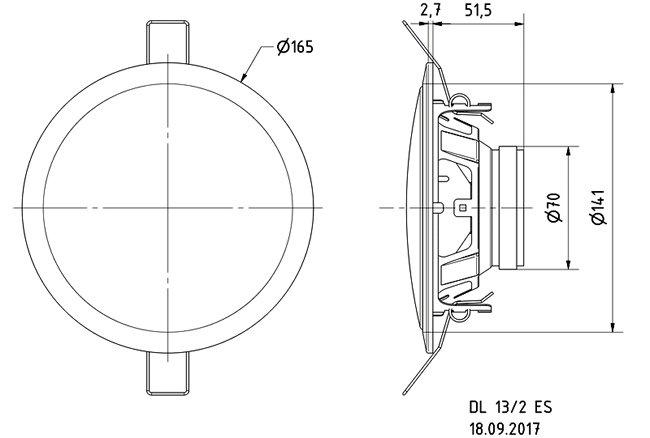

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

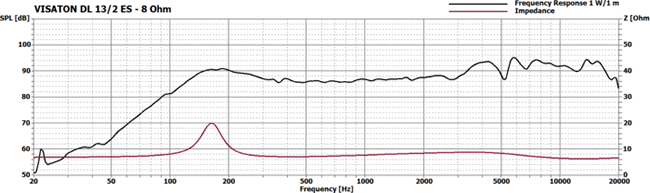

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern


    Loudspeaker Directivity Pattern (on and off axis response)
