ML 10 T - 100V'

Thumbnail Filmstrip of ML 10 T - 100V' Images

    Purchase ML 10 T - 100V'

    SKU: V-50143-ML10T ML 10 T - 100V'

    $55.00 each
    Brand: Visaton
    Quantity in Basket:  None



    4 available.




    Visaton Speaker Driver - ML 10 T - 100 V Ceiling / Wall Speaker
    Art. No. 50143

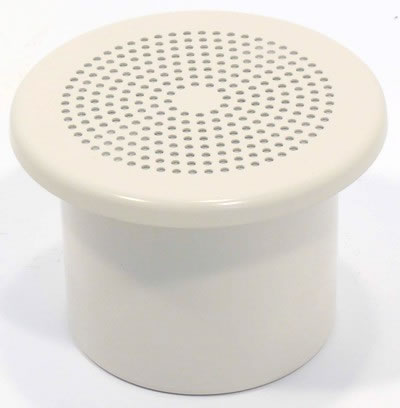

    Visaton ML10T - 100 V Ceiling / Wall Speaker
    Visaton ML10T - 100 V Ceiling / Wall Speaker



    Characteristics and Sound Properties
    10 cm (4") Ceiling/Wall speaker with rear cover and 100 V transformer. Good voice reproduction. Compact dimensions.

    Mounting guide (PDF; 399 KB)

    Typical applications:-
    - For fitting in hollow ceilings or walls, for music and speech in shops, at home, hotels, cruise ships etc.



    Technical Specifications

    Transformer matching 6; 3; 1.5 W
    Sound pressure level 90 dB (1 W/1 m) @ 1800 Hz
    Frequency response 150–15000 Hz
    Mean sound pressure level

    85 dB (1 W/1 m)
    Max. sound pressure level 92 dB (6 W/1 m)
    Opening angle (-6dB) 180°/4000 Hz
    Voice coil diameter 20 mm
    Cutout diameter 104 mm
    Net weight 0.93 kg
    Colour RAL 9010
    Temperature range -25 ... 70 °C
    Temperature Range





    Driver Dimensions

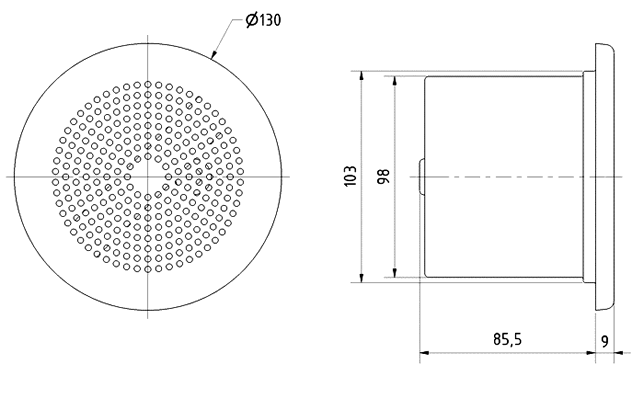

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

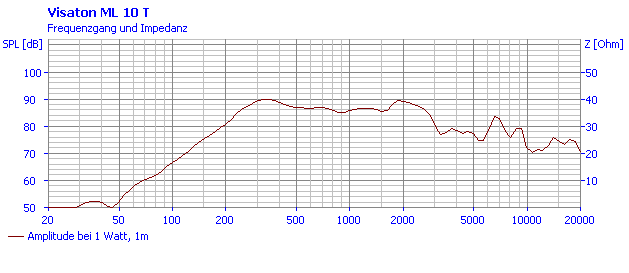

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

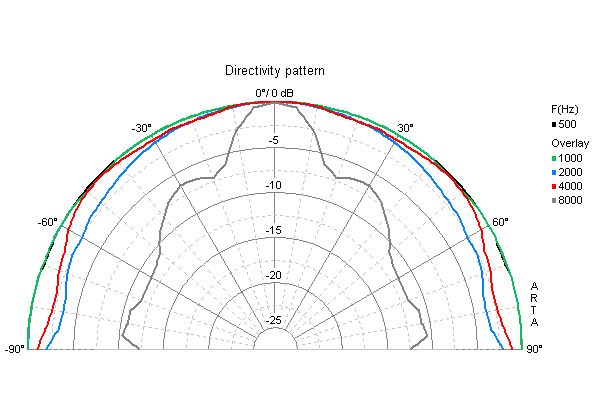

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
