ML 16 A - 100V

Thumbnail Filmstrip of ML 16 A - 100V Images

    Purchase ML 16 A - 100V

    SKU: V-50133-ML16A ML 16 A - 100V

    $104.00 each - special order
    Brand: Visaton
    Shipping Weight: 1.51 kg
    Quantity in Basket:  None







    Visaton Speaker Driver - ML 16 A - 100 V Ceiling Speaker
    Art. No. 50133

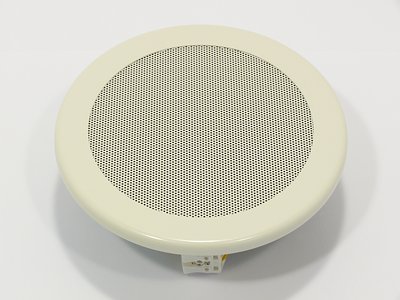

    Visaton ML16A - 100 V Ceiling Speaker
    Visaton ML16A- 100 V Ceiling Speaker



    Characteristics and Sound Properties
    16 cm (6.5") ceiling speaker with high efficiency and good speech reproduction. Especially for installation in metal ceilings (e.g. ships). A push-terminal block allows a quick and easy connection to the 100-V network including the eventually necessary level adjustment. After screwing the speaker to the ceiling a quick-mounting bayonet connection provide an easy installation of the grille.

    Typical applications:-
    - Installation in metal ceilings

    Attributes:-
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C;96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
    - Moisturised cone
    - UV-resistant
    - Colour: NCS S 0500-N



    Technical Specifications

    Transformer matching 2; 1; 0.5 W
    Nominal Impedance Z 5; 10; 20 kOhm
    Frequency response 100–15000 Hz
    Mean sound pressure level 94 dB (1 W/1 m)
    Max sound pressure level 97 dB (2 W/1 m)
    Opening angle (-6dB) 54°/4000 Hz
    Voice coil diameter 14 mm
    Cutout diameter 143 mm
    Net weight 1.1 kg
    Colour NCS S 0500-N
    Temperature range −40 ... 110 °C
    Temperature Range

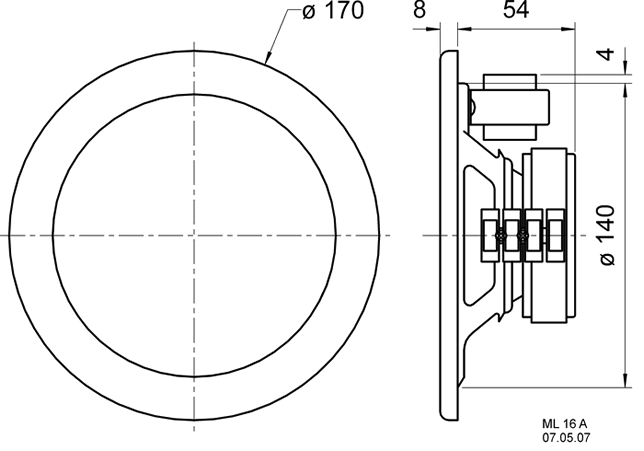

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

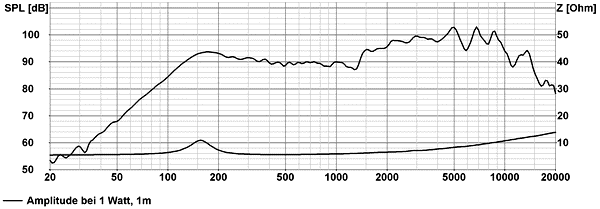

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

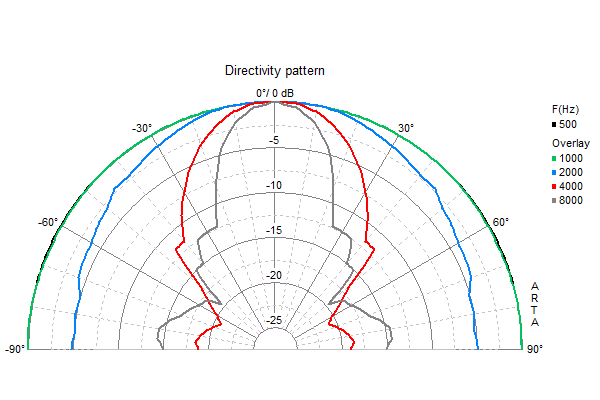

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
