    Visaton Speaker Driver - ML 16 - 100 V Ceiling
    Art. No. 50133

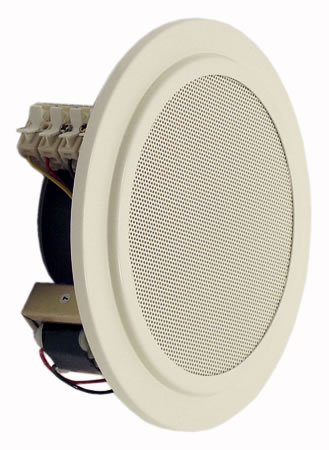

    Visaton ML16 - 100 V Ceiling Speaker
    Visaton ML16 - 100V Ceiling Speaker



    Characteristics and Sound Properties

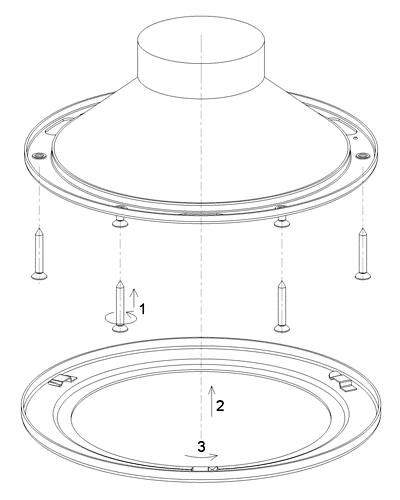

    Ceiling speaker with high efficiency and good speech reproduction. Especially for installation in metal ceilings (e.g. ships). A push-terminal block allows a quick and easy connection to the 100-V-network including the eventually necessary level adjustment. After screwing the speaker to the ceiling a quick-mounting bayonet connection provides an easy installation of the grille.

    Typical applications:-
    - Installation in metal ceilings

    Attributes:-
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
    - Moisturised cone
    - UV-resistant
    - Metal basket
    - 100 V transformer



    Technical Specifications

    Transformer matching 2; 1; 0.5 W
    Nominal Impedance Z 5; 10; 20 kOhm
    Sound pressure level 102 dB (1 W/1 m)
    @ 4954 Hz
    Frequency response 100–15000 Hz
    Mean sound pressure level 94 dB (1 W/1 m)
    Max sound pressure level 97 dB (2 W/1 m)
    Opening angle (-6dB) 55°/4000 Hz
    Resonance frequency fs 150 Hz
    Voice coil diameter 14 mm
    Cutout diameter 143 mm
    Net weight 1.1 kg
    Colour RAL 9010
    Temperature range −40 ... 110 °C

    Temperature Range

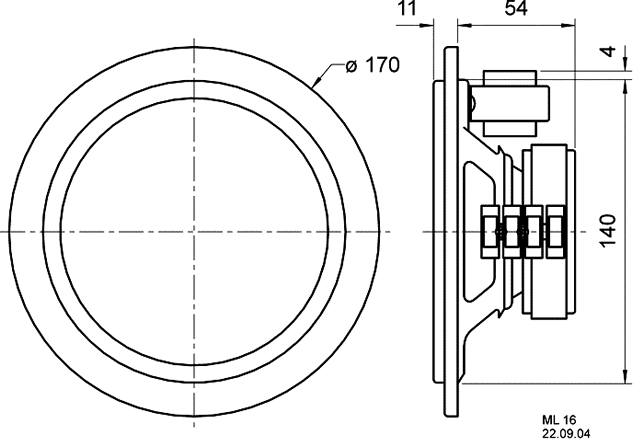

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

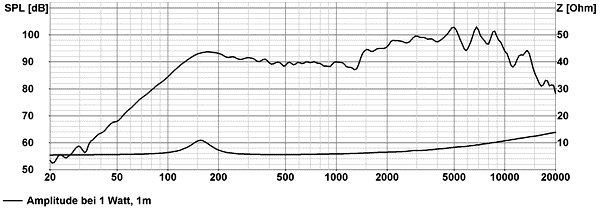

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

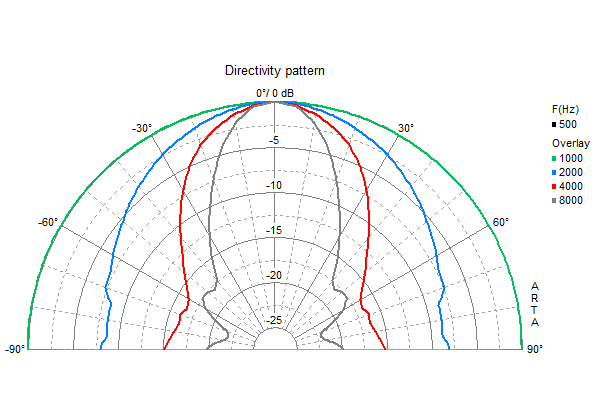

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
