DL 18 1 EV - 100 V

Thumbnail Filmstrip of DL 18 1 EV - 100 V Images

    Purchase DL 18 1 EV - 100 V

    SKU: V-50108-DL181EV DL 18 1 EV - 100 V

    $145.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DL 18/1 EV - 100 V Evacuation Ceiling Mount
    Art. No. 50108

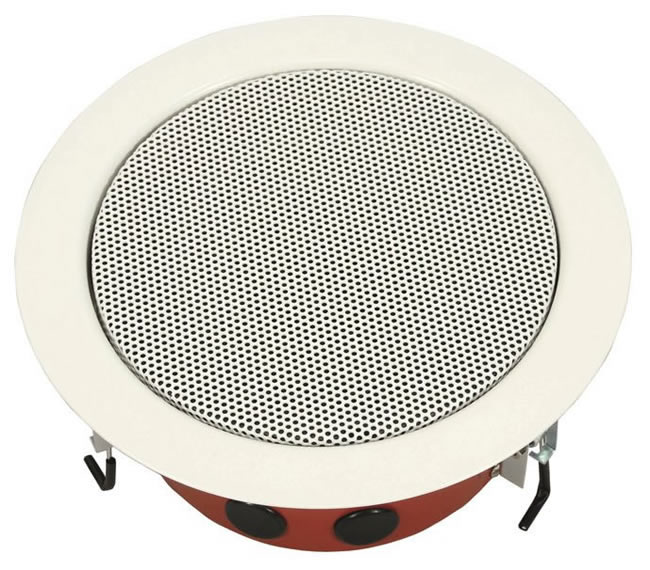

    Visaton DL18/1EV - 100V Ceiling Speaker.

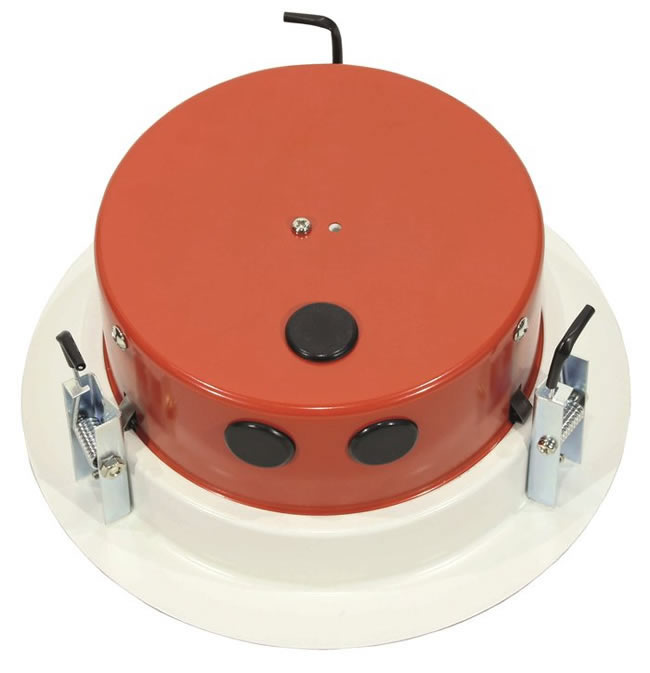

    Visaton DL18/1EV - 100V Ceiling Speaker - rear view.
    Visaton DL18/1EV - 100V Ceiling Speaker



    Characteristics and Sound Properties

    17 cm (6.5 ") ceiling loudspeaker with corrosion-resistant grille (RAL 9010), suitable for installation in ceilings of all materials. Equipped with a broadband loudspeaker. Quick installation by means of a circular undercover section in which the loudspeaker with transformer and mounting ring is used in snap-in technology. The connection to the 100 V mains as well as any necessary level adjustment is made by a screw terminal (ceramic terminal with thermal fuse). The cover grille is fastened quickly and practically by means of a bayonet connection and the cover cap by means of snap-action springs.

    Applications:

    • Ceiling loudspeaker for evacuation systems
    Characteristics:
    • Certified according to EN 54-24
    • Compliant to BS 5839 part 8 and EN 60849



    Technical Specifications

    Transformer matching 6W / 3W / 1.5W (100V)
    Frequency response 400-20000 Hz * 1)
    80-20000 Hz * 2)
    Mean sound pressure level 94 dB (1 W / 1 m)
    Max. sound pressure level
    101 dB (6 W / 1 m)
    Opening angle (-6 dB) 57° / 4000 Hz
    Cutout diameter 200 mm
    Net weight 1.34 kg
    Colour RAL 9010

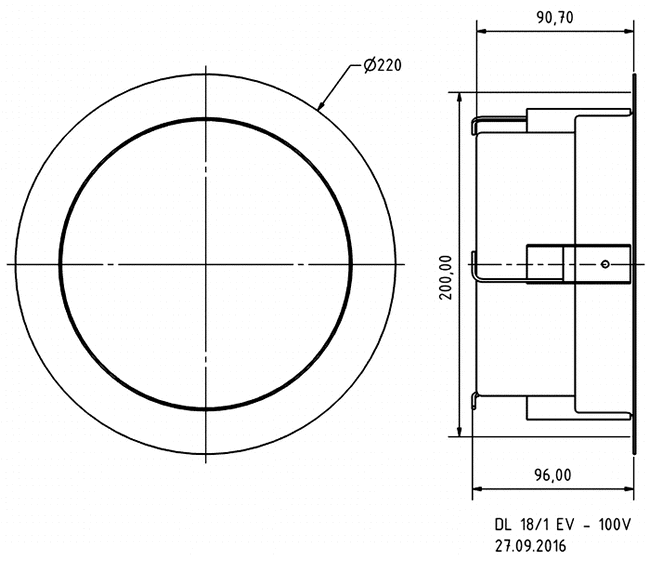

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph

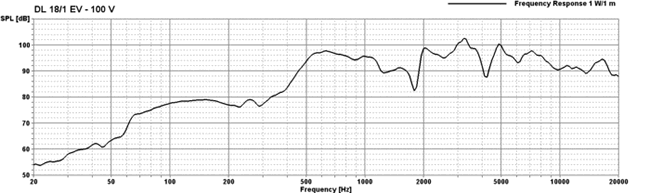

Frequency response *1): with cap
    Frequency response *1): with cap

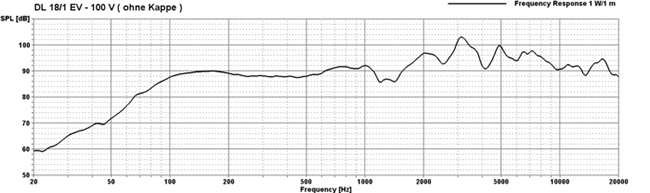

    Visaton DL 18-1 EV 100V Frequency response *2): without cap
    Frequency response *2): without cap


    Loudspeaker Frequency and Impedance Response Graph

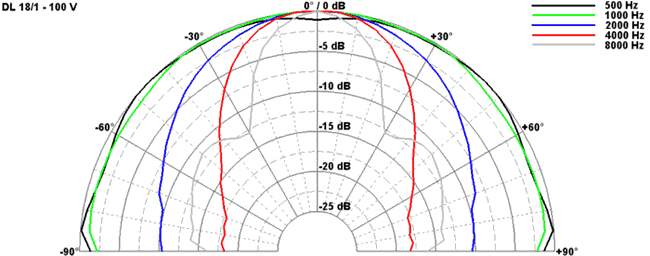

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
