DL 10 8 Ohm RAL 9005

Thumbnail Filmstrip of DL 10 8 Ohm RAL 9005 Images

    Purchase DL 10 8 Ohm RAL 9005

    SKU: V-50014-DL10-Black-8 DL 10 8 Ohm RAL 9005

    $68.00 each
    Brand: Visaton
    Quantity in Basket:  None

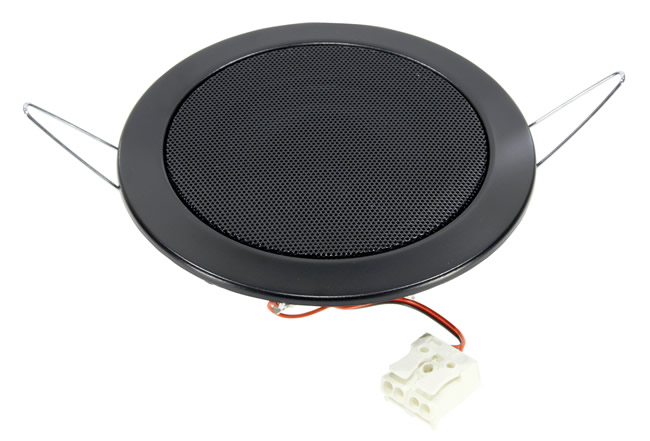

    Visaton Speaker Driver - DL 10 - 8 Ohm (RAL 9005) 10 cm (4") ceiling-mounted speaker with black metal cover.
    Art. No. 50014


    Visaton

    DL 10 - 8 Ohm (RAL 9005) 10 cm (4") ceiling-mounted speaker with black metal cover.



    Characteristics and Sound Properties
    10 cm (4") ceiling-mounted speaker with black metal cover (RAL 9005). Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms. A push-terminal block allows quick and easy connection. A compact solution for home and professional use with good sound qualities. DL 10 can be supplied painted in other RAL colours on request.

    Typical Applications:-

    For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 8 Ohm
    Frequency response

    75–20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 82°/4000 Hz
    Excursion limit ± 2.5 mm
    Resonance frequency fs 140 Hz
    Magnetic induction 0.7 T
    Magnetic flux 130 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 20 mm
    Height of winding 6 mm
    Cutout diameter 110 mm
    Net weight 0.4 kg
    Sound pressure level 90 dB (1 W/1 m)@ 2100 Hz
    Colour RAL 9005
    Length of cable 0.1
    Protective System IP 54 *)
    Temperature Range −40 ... 110 °C

    Temperature Range

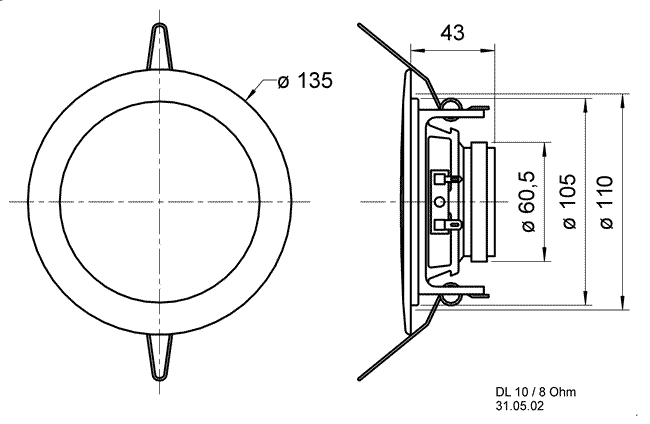

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

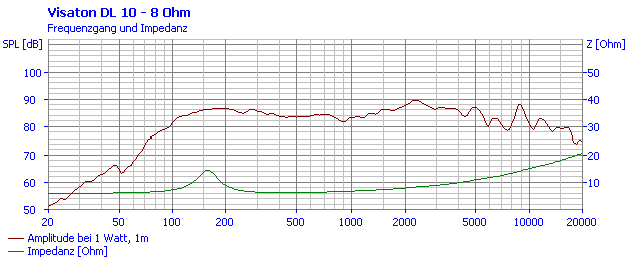

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph

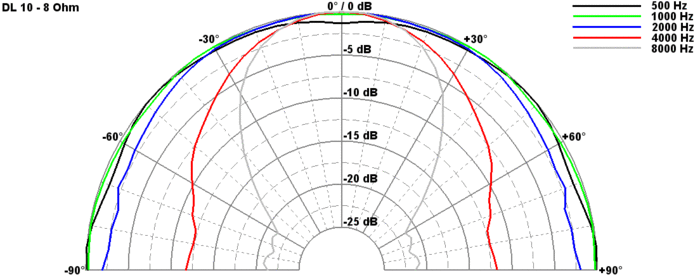

    Directivity Pattern


    Loudspeaker Directivity Pattern (on and off axis response)
