FR 13 - 4 Ohm

Thumbnail Filmstrip of FR 13 - 4 Ohm Images

    Purchase FR 13 - 4 Ohm

    SKU: V-4800-FR13 FR 13 - 4 Ohm

    $32.00 each - on backorder
    Brand: Visaton
    Quantity in Basket:  None

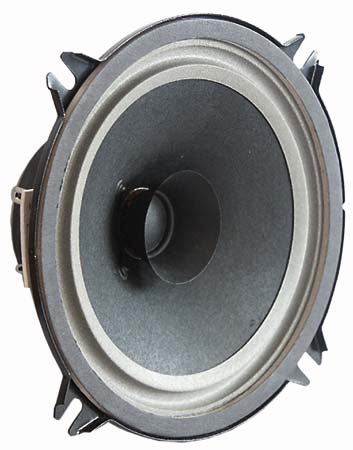

    Visaton Speaker Driver - FR 13 - 4 Ohm Full Range
    Art. No. 4800

    Visaton FR13 - 4 Ohm Full Range.
    Visaton FR13 - 4 Ohm Full range



    Characteristics and Sound Properties
    13 cm (5") full-range loudspeaker with an inverted cone. Uniform frequency response and powerful low-frequency output. Simple installation e.g. in vehicles with loudspeaker mounts for 13 cm loudspeakers.

    Typical applications:-

    - Built into cars, buses or trains
    - Electronic musical instruments
    - Monitoring speaker for electronic devices



    Technical Specifications

    Rated power 30 W
    Maximum power 50 W
    Nominal impedance Z 4 Ohm
    Frequency response 65–20000 Hz
    Mean sound pressure level 88 dB (1W/1m)
    Opening angle (-6 dB) 65°/4000 Hz
    Excursion limit ± 2.5mm
    Resonance frequency fs 100 Hz
    Magnetic induction 0.85 T
    Magnetic flux 160 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 6 mm
    Cutout diameter 116 mm
    Net weight 0.29 kg
    DC resistance Rdc 3.4 Ohm
    Mechanical Q factor Qms 5.17
    Electrical Q factor Qes 1.64
    Total Q factor Qts 1.25
    Equivalent volume Vas 6.1 litres
    Effective piston area Sd 87 cm2
    Dynamically moved mass Mms 4.5 grams
    Force factor Bxl 2.3 Tm
    Inductance of the voice coil L 0.2 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Temperature range −25 ... 100 °C

    Temperature Range

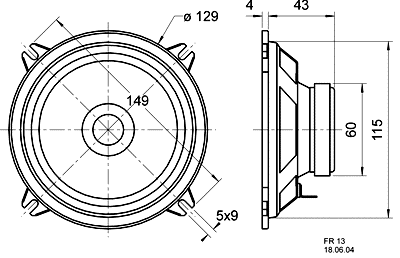

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

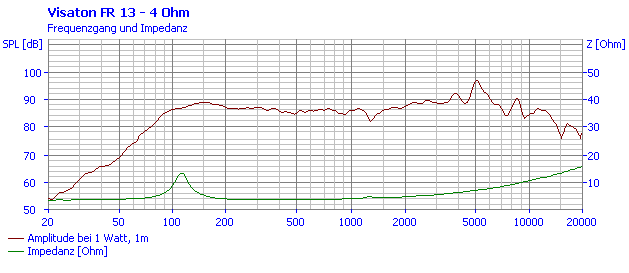

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

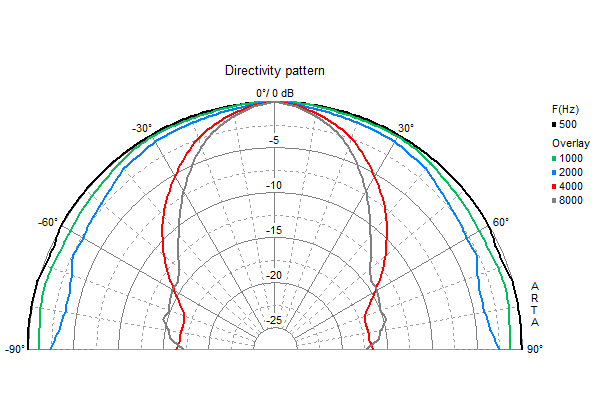

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
