FX 10 - 4 Ohm

Thumbnail Filmstrip of FX 10 - 4 Ohm Images

    Purchase FX 10 - 4 Ohm

    SKU: V-4692-FX10 FX 10 - 4 Ohm

    $45.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FX 10 - 4 Ohm 2-Way Coaxial
    Art. No. 4692

    Visaton FX10 - 4 Ohm.

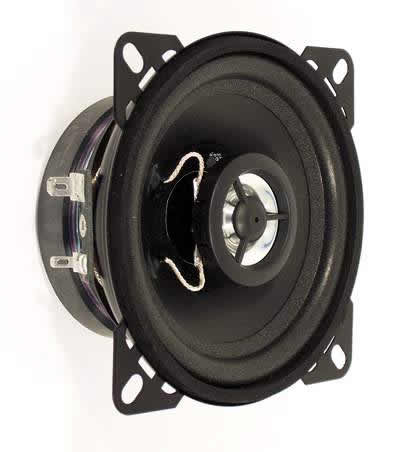

    Visaton FX10 - 4 Ohm 2-way coaxial speaker



    Characteristics and Sound Properties
    10 cm (4") 2-way coaxial loudspeaker with standard basket. Integrated crossover (capacitor) for the tweeter. Straightforward installation in vehicles with cutouts for 10 cm speakers. Waterproof PP-cone.

    Typical applications:-
    - Vehicles
    - Mobile homes

    Attributes:-
    - Waterproof cone
    - Metal basket
    - Coaxial speaker



    Technical Specifications

    Rated power 40 W
    Maximum power 70 W
    Nominal impedance Z 4 Ohm
    Frequency response 70–22000 Hz
    Mean sound pressure level 84 dB (1W/1m)
    Opening angle (-6 dB) 88°/4000 Hz
    Excursion limit ± 2 mm
    Resonance frequency fs 110 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 25 mm
    Height of winding 6 mm
    Cutout diameter 93 mm
    Net weight 0.4 kg
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Temperature range −25 ... 70 °C

    Temperature Range

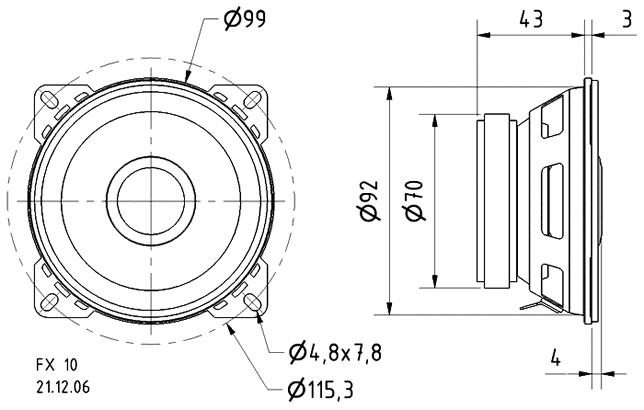

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

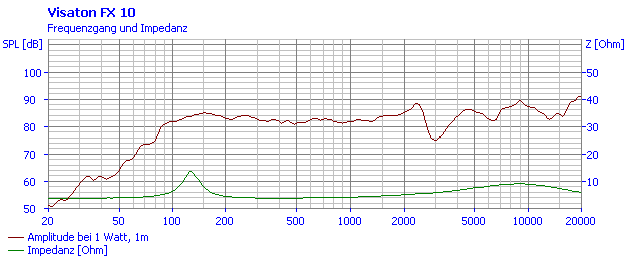

    Frequency and Impedance Response

    Frequency response FX 10 4 Ohm
    Loudspeaker Frequency and Impedance Response Graph

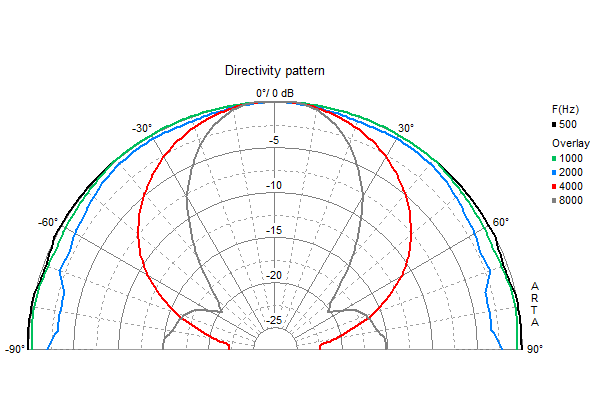

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
