PX 13 B - 4 Ohm

Thumbnail Filmstrip of PX 13 B - 4 Ohm Images

    Purchase PX 13 B - 4 Ohm

    SKU: V-4605-PX13B PX 13 B - 4 Ohm

    $52.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None

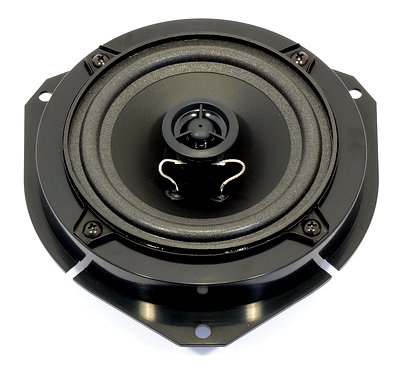

    Visaton Speaker Driver - PX 13 B - 4 Ohm 2-Way Coaxial Fiat Ducato Loudspeaker
    Art. No. 4605

    Visaton PX13B - 4 Ohm 2-way Coaxial Fiat Ducato Loudspeaker.
    Visaton PX13B - 4 Ohm 2-Way Coaxial Fiat Ducato Loudspeaker



    Characteristics and Sound Properties
    13 cm (5") 2-way coaxial loudspeaker with piezoelectric tweeter and adapter ring for fitting into the door of Fiat Ducato (as from 2006).

    Typical applications:-
    - Vehicles
    - Mobile homes



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response 60–15000 Hz
    Mean sound pressure level 84 dB (1W/1m)
    Opening angle (-6 dB) 75°/4000 Hz
    Excursion limit ±2 mm
    Resonance frequency fs 95 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 5.5 mm
    Net weight 0.53 kg
    Magnetic induction 1.0 T
    Magnetic flux 190 µWb
    Temperature range −25 ... 70 °C
    Temperature Range

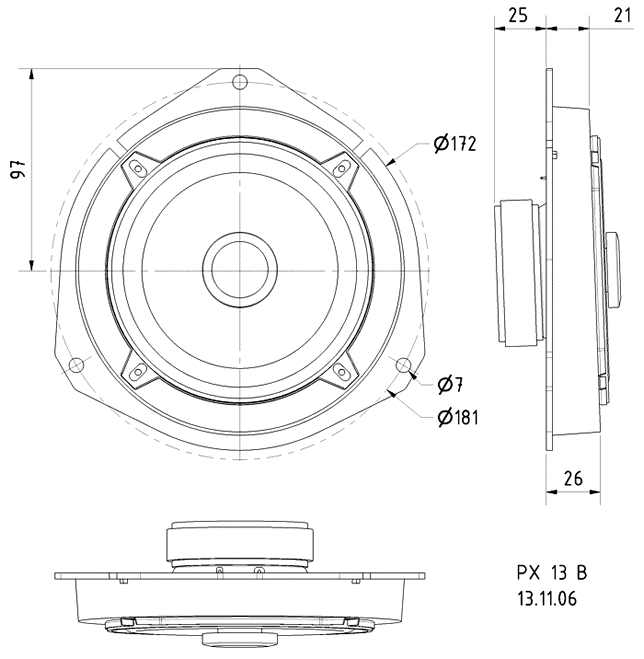

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

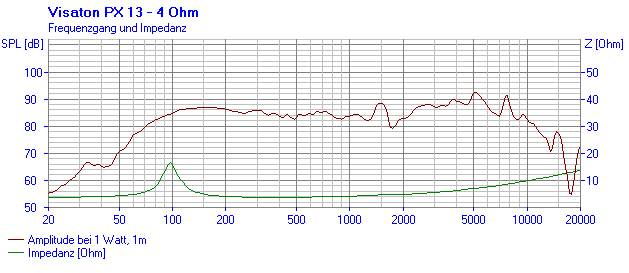

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

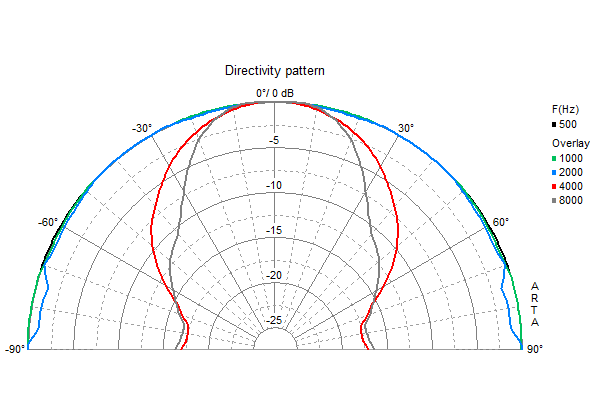

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
