SKU: V-4570-FX13 FX 13 - 4 Ohm

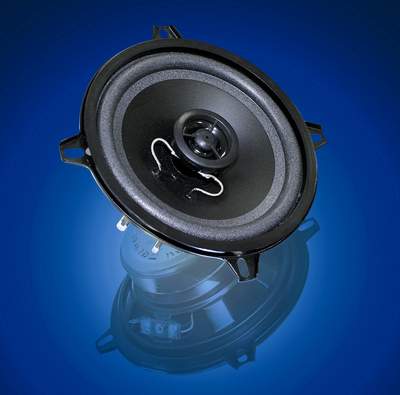

Visaton Speaker Driver - FX 13 - 4 Ohm 2-Way Coaxial
Art. No. 4570

Characteristics and Sound Properties
13 cm (5") 2-way coaxial loudspeaker with standard basket. Integrated crossover (capacitor) for the tweeter. Straightforward installation in vehicles with cutouts for 13 cm speakers. Waterproof PP-cone.

Typical applications:-
- Vehicles
- Mobile homes

Attributes:-
- Waterproof cone
- Metal basket
- Coaxial speaker

Technical Specifications

Rated power	30 W
Maximum power	50 W
Nominal impedance Z	4 Ohm

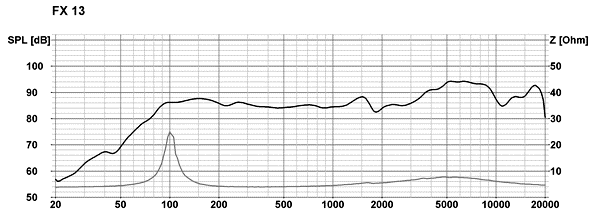

Frequency response	60-20000 Hz
Mean sound pressure level	85 dB (1W/1m)

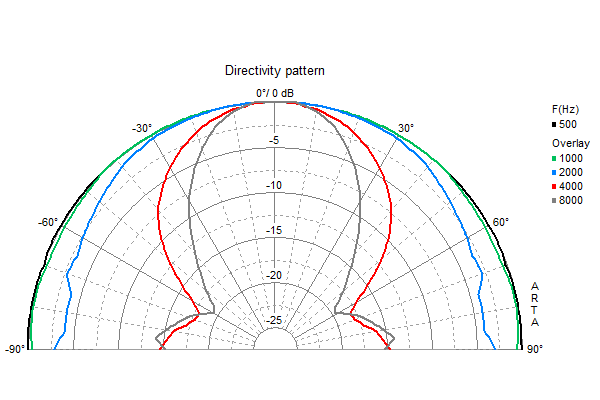

Opening angle (-6 dB)	72°/4000 Hz
Excursion limit	± 2 mm
Resonance frequency fs	100 Hz
Magnetic induction	1.0 T
Magnetic flux	250 uWb
Height of front pole-plate	4 mm
Voice coil diameter	20 mm / 14 mm
Height of winding	6 mm

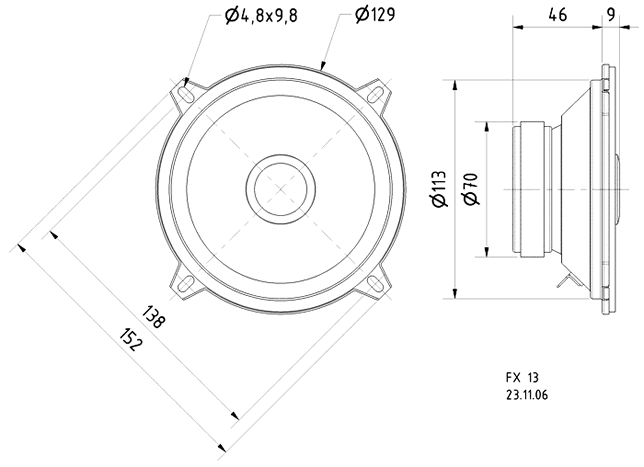

Cutout diameter	115 mm
Net weight	0.51 kg
Connections	4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-)
Temperature range	-25 ... 70 °C
