Visaton Speaker Driver - BSX 130 WP - 4 Ohm Exciter / Shaker / Vibration Speaker
Art. No. 4515

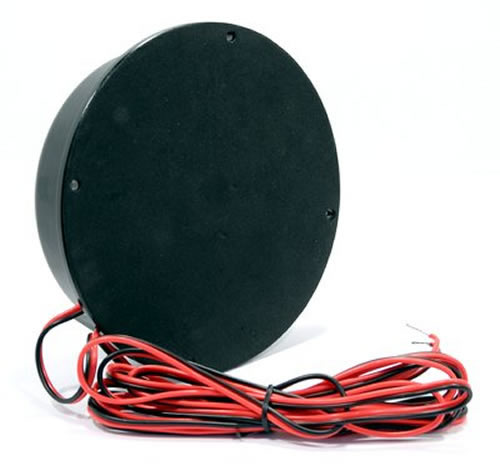

![Visaton BSX130WP 4 Ohm exciter structure-borne sound converter.](/mm5/graphics/visaton-drivers/bsx130wp/bsx130wp_1.jpg)

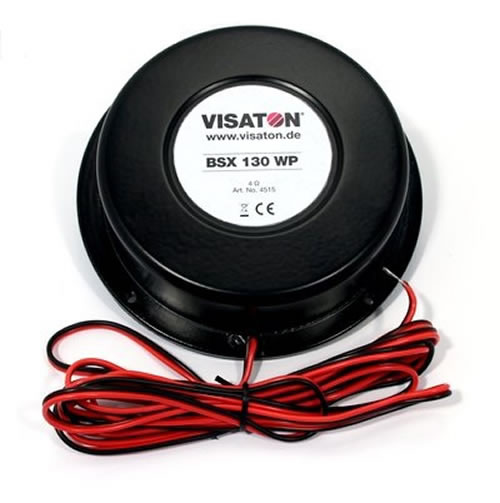

![BSX130WP 4 Ohm exciter structure-borne sound converter rear view](/mm5/graphics/visaton-drivers/bsx130wp/bsx130wp_2.jpg)
Visaton BSX130WP - 4 Ohm Structure-borne Sound Converter
Characteristics and Sound Properties
Structure-borne sound converter for bass frequencies. The units are attached to a surface which is able to resonate, which causes it to oscillate (e.g. a panel of a car body, the base construction of a settee etc.). No enclosed cabinet is required. Using the BSX 130 WP - 4 Ohm, this enables the lowest bass frequencies, such as those used for effects in films, to be reproduced in such a way that they are felt through the body rather than heard. Please find further information on exciters here: Basic principles of exciter-technology (PDF; 234 KB)
Attributes:- Splash water protected.
Technical Specifications
Rated power | 50 W |
Maximum power | 100 W |
Nominal impedance Z | 4 Ohm |
Net weight | 1.2 kg |
Length of cable | 3 m |
Protective system | IP 64 |
Temperature range | −25 ... +70 °C |
![Temperature Range](/mm5/graphics/visaton-drivers/temperatur_25_70.gif)
![IP 64 protective system](/mm5/graphics/visaton-drivers/ip64.png)
Driver Dimensions

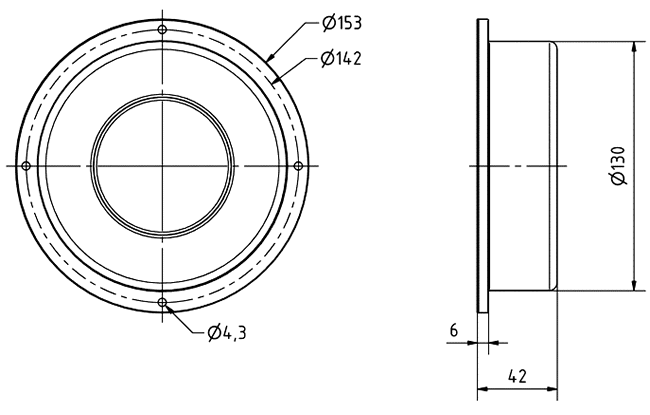

![Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)](../mm5/graphics/visaton-drivers/bsx130wp/bsx130wp_tz.gif)
Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
