Visaton Speaker Driver - PL 8 RV 8 cm Full Range with Grille - 4 Ohm
Art. No. 4480

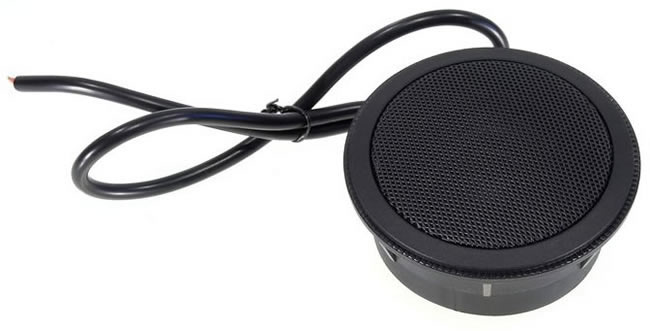

![Visaton PL8RV Full Range Speaker- 4 Ohm.](../mm5/graphics/visaton-drivers/pl8rv/pl8rv_4_1.jpg)

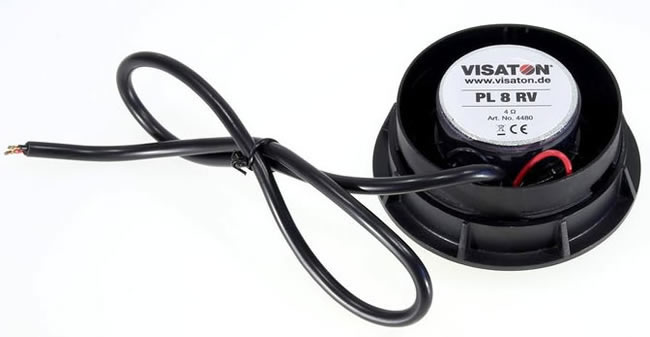

![Visaton PL8RV Full Range Speaker- 4 Ohm - rear view.](/mm5/graphics/visaton-drivers/pl8rv/pl8rv_4_2.jpg)
Visaton PL8RV Full Range Speaker- 4 Ohm
Characteristics and Sound Properties
8 cm (3.3") full-range speaker with high efficiency, balanced and very wide frequency response. High quality speech reproduction. Simple mounting in dashboards or door panels by mounting ring with thread.
Typical applications:-
- Dashboards, door panels and other panels in vehicles and special vehicles
- High quality intercom systems
Attributes:-
- Assembly without additional screws
Technical Specifications
Rated power | 10 W |
Maximum power | 20 W |
Frequency response | 140–19000 Hz |
Mean sound pressure level |
84 dB (1 W/1 m) |
Net weight | 0.2 kg |
Cutout diameter | 72.5 mm |
Length of cable | 0.5 m |
Temperature range | −25 ... 70 °C |
Colour | Black |
![Temperature Range](/mm5/graphics/visaton-drivers/temperatur_25_70.gif)

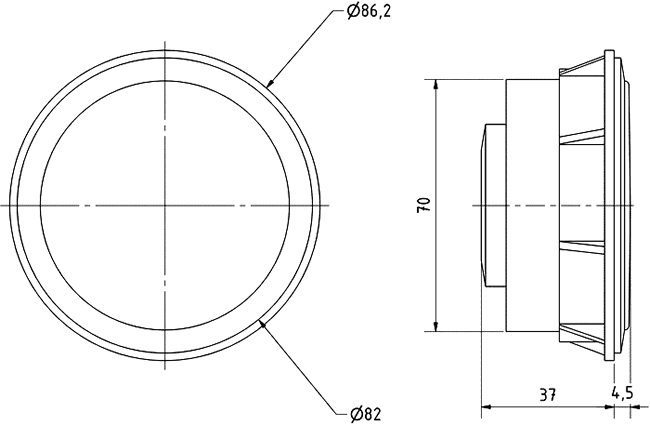

Driver Dimensions
![Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)](../mm5/graphics/visaton-drivers/pl8rv/pl8rv_tz.gif)
Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

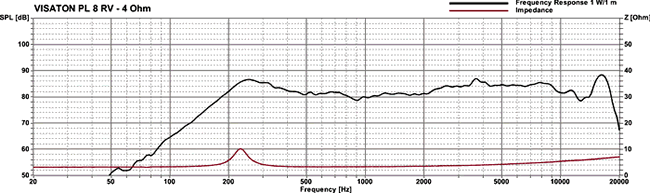

Frequency and Impedance Response
![Loudspeaker Frequency and Impedance Response Graph](../mm5/graphics/visaton-drivers/pl8rv/pl8rv_fs.gif)
Loudspeaker Frequency and Impedance Response Graph
