PL 5 - 4 Ohm'

Thumbnail Filmstrip of PL 5 - 4 Ohm' Images

    Purchase PL 5 - 4 Ohm'

    SKU: V-4465-PL5 PL 5 - 4 Ohm'

    $45.00 each
    Brand: Visaton
    Quantity in Basket:  None



    2 available.




    Visaton Speaker Driver - PL 5 - 4 Ohm Projection Loudspeaker
    Art. No. 4465

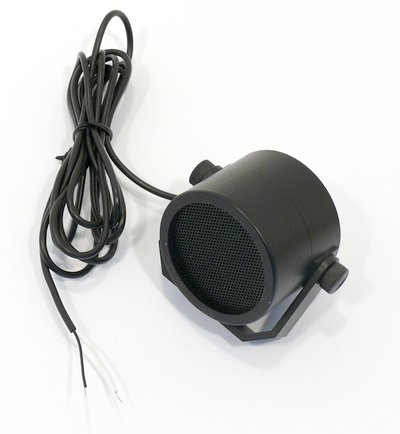

    Visaton PL5 - 4 Ohm projection loudspeaker.

    Visaton PL5 - 4 Ohm Projection Loudspeaker.



    Characteristics and Sound Properties
    5 cm (2") projection loudspeaker with cylindrical plastic housing and adjustable mounting bracket for universal fixation. The 2-m-connection cable provides a high variability. The loudspeaker is suitable for hands-free equipment, radio communication systems and applications where small projection loudspeakers are needed.



    Technical Specifications

    Rated Power 4 W
    Maximum power 10 W
    Nominal impedance Z 4 Ohm
    Frequency response 350–17000 Hz
    Mean sound pressure level 83 dB (1 W/1 m)
    Resonance frequency fs 550 Hz
    Net weight 0.194 kg
    Length of cable 2 m
    Protective system IP 42
    Temperature range -30 ... 85 °C

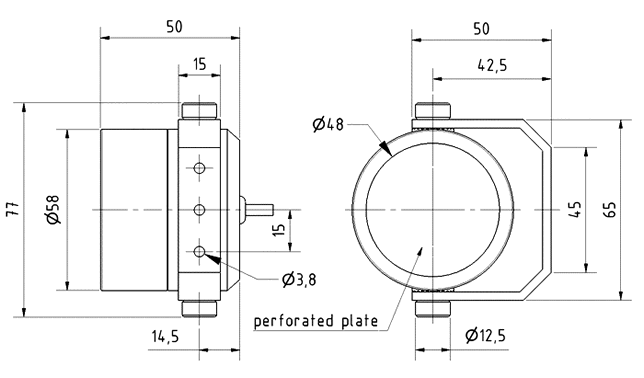

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

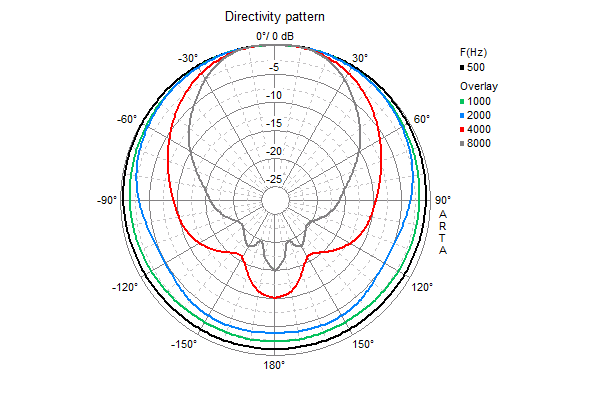

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
