PL 5 RV - 4 Ohm

Thumbnail Filmstrip of PL 5 RV - 4 Ohm Images

    Purchase PL 5 RV - 4 Ohm

    SKU: V-4463-PL5RV PL 5 RV - 4 Ohm

    $55.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - PL 5 RV - 4 Ohm Fullrange Speaker in Housing
    Art. No. 4463

    PL5RV 4 Ohm Full Range 4cm speaker.


    PL5RV 4 Ohm Full Range 4cm speaker, rear view.
    Visaton PL5RV - 4 Ohm Fullrange Speaker



    Characteristics and Sound Properties
    4 cm (1.6“) fullrange speaker with a small housing and threaded mounting ring for easy installation for example in dash boards. High efficiency at frequencies relevant for speech reproduction, increased power handling through high pass filter. 1 m cable.

    Typical applications:-

    • Dashboards, door panels or other panels in vehicles
    Attributes:-
    • Mounting without additional screws



    Technical Specifications

    Rated power 10 W
    Maximum power 20 W
    Nominal impedance Z 4 Ohm
    Frequency response
    460–20000 Hz
    Mean sound pressure level 79dB (1W/1m)
    Resonance frequency fs 620 Hz
    Net weight 0.076 kg
    Cutout diameter 44.0 mm
    Colour Black

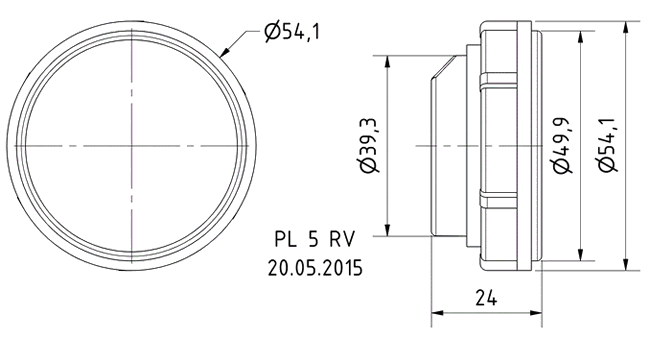

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

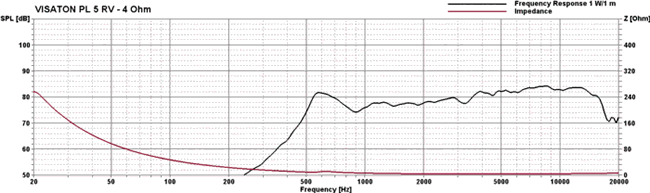

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

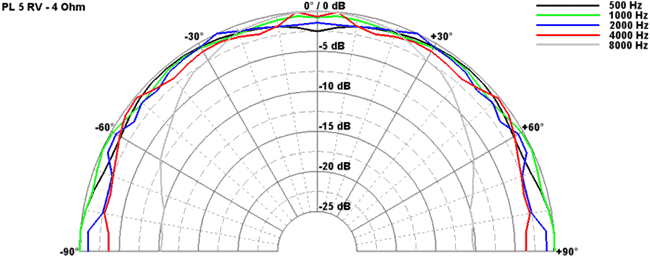

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
