CP 13 - 4 Ohm

Thumbnail Filmstrip of CP 13 - 4 Ohm Images

    Purchase CP 13 - 4 Ohm

    SKU: V-4454-CP13 CP 13 - 4 Ohm

    $85.00 per pair
    Quantity in Basket:  None







    Visaton Speaker Driver - CP 13 - 4 Ohm Ferro-fluid Cooled Tweeter
    Art. No. 4454

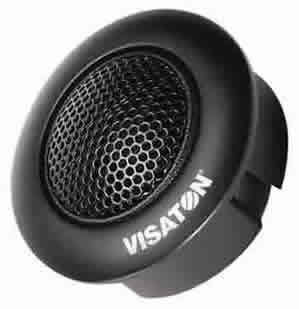

    Visaton CP13 - 4 Ohm.

    Visaton CP13 - 4 Ohm, alternative mounting.
    Visaton CP13 - 4 Ohm, showing both mounting options.



    Characteristics and Sound Properties
    Very compact 13 mm (0.5") ferro-fluid cooled tweeter with a polycarbonate cone, featuring an absolutely linear frequency response. Crisp high-range reproduction and excellent omnidirectional sound distribution. Tweeter in low to medium-output 2- or 3-way systems or as an additional tweeter. Can be surface or flush mounted. Especially suitable for mounting in confined spaces (e.g. mirror vicinity and door handles).
    Accessories: Mounting ring and connecting cables included.

    Note: Use the tweeter only in conjunction with a 2-way or 3-way crossover with 12dB/oct and 6kHz cut-off frequency or higher; or with a 3.3uF series capacitor.



    Technical Specifications

    Nominal power handling with high pass 60 W
    (12dB / Oct. @ 6000 Hz)
    Peak power handling with high pass 100 W
    (12dB / Oct @ 6000Hz)
    Nominal impedance Z 4 Ohm
    Frequency response 1700-22000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Dispersion angle (-6 dB) 180°/8000 Hz
    Resonance frequency fs 2400 Hz
    Magnetic induction 0.8 T
    Magnetic flux 65 µWb
    Voice coil diameter 13 mm
    Height of winding 1.5 mm
    Cutout diameter 33.5 mm
    Net weight 0.033 kg
    DC resistance Rdc 3.3 Ohm
    Inductance of the voice coil L 0.4 mH





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
