MB 14 12V Magnetic Buzzer

Thumbnail Filmstrip of MB 14 12V Magnetic Buzzer Images

    Purchase MB 14 12V Magnetic Buzzer

    SKU: V-3592-MB14 MB 14 12V Magnetic Buzzer

    $8.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - MB14 12V Magnetic Buzzer
    Art. No. 3592

    Visaton MB 14 - 12V Magnetic Buzzer

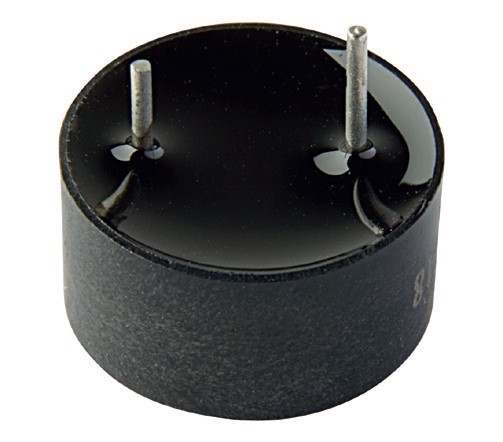

    Visaton MB 14 - 12V Magnetic Buzzer Rear View
    Visaton MB 14 - 12V Magnetic Buzzer



    Characteristics and Sound Properties
    14 mm Magnetic Buzzer
    Electro-magnetic audio signalling buzzer for devices and applications, e.g. for industrial and office technology, medical technology, home and automotive electronics.



    Technical Specifications

    Resonance frequency fs 4000 Hz
    Net weight 1g
    Sound pressure level 80 dB (0.1 m)
    Input voltage
    12 VDC (9-16 VDC)
    Temperature range −40 ... 85 °C

    Temperature Range

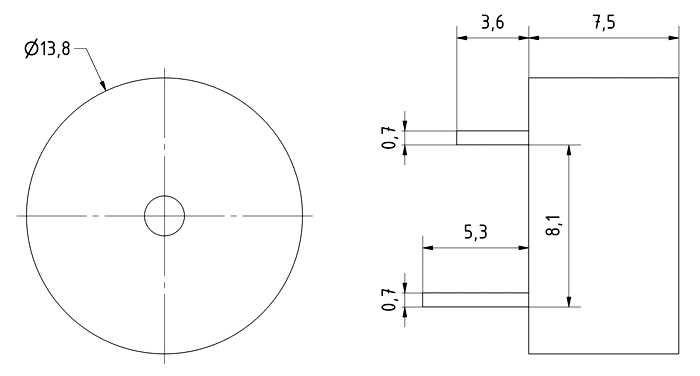

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
