    Visaton Speaker Driver - MB12 5V Magnetic Buzzer
    Art. No. 3590

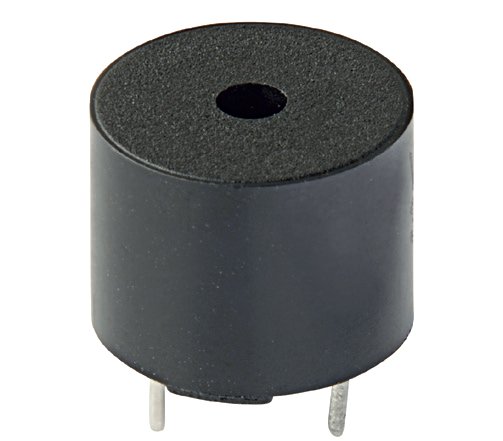

    Visaton MB 12 - 5V Magnetic Buzzer

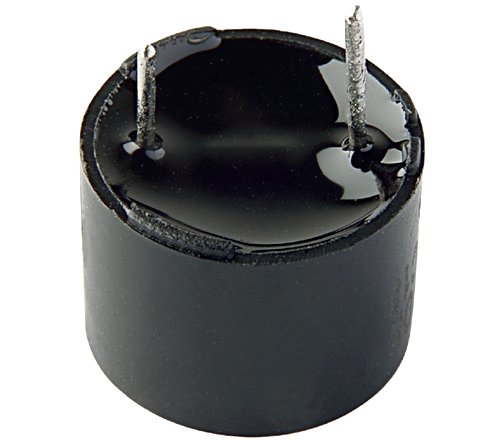

    Visaton MB 12 - 5V Magnetic Buzzer Rear View
    Visaton MB 12 - 5V Magnetic Buzzer



    Characteristics and Sound Properties
    12 mm Magnetic Buzzer
    Electro-magnetic audio signalling buzzer for devices and applications, e.g. for industrial and office technology, medical technology, home and automotive electronics.



    Technical Specifications

    Resonance frequency fs 2300 Hz
    Net weight 2g
    Sound pressure level 88 dB (0.1 m)
    Input voltage
    5 VDC (3-17 VDC)
    Temperature range −40 ... 85 °C

    Temperature Range

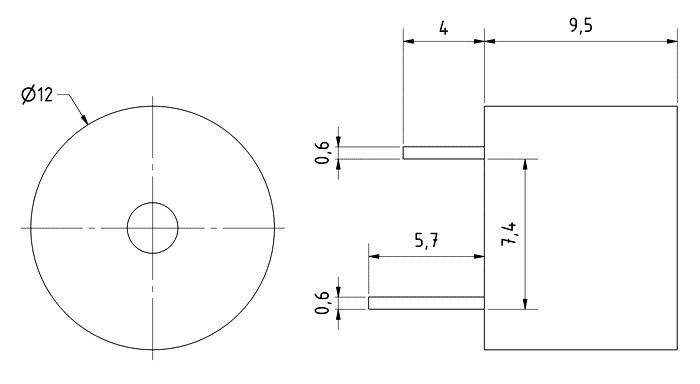

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
