PB 911 - 5V

Thumbnail Filmstrip of PB 911 - 5V Images

    Purchase PB 911 - 5V

    SKU: V-3582-PB911-Piezo-Buzzer PB 911 - 5V

    $7.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - PB 9.11 5V Piezo Buzzer
    Art. No. 3582

    Visaton B 9.11 - 5 V Piezo Buzzer
    Visaton B 9.11 - 5 V Piezo Buzzer
    Visaton PB 9.11 - 5V Piezo Buzzer



    Characteristics and Sound Properties

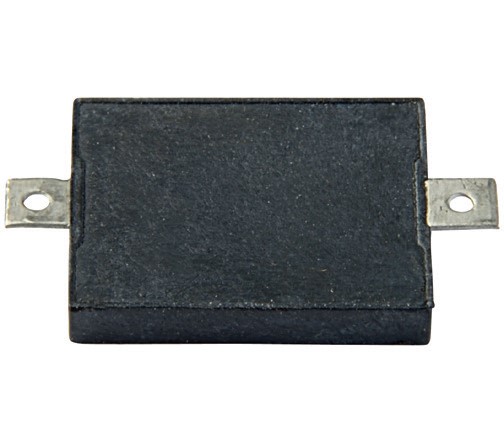

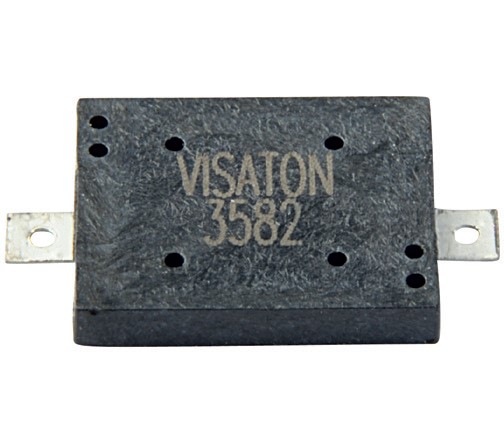

    9 x 11 mm Piezo Buzzer
    Piezo-electric audio signalling buzzer for devices and applications, e.g. for industrial and office technology, medical technology, home and automotive electronics.



    Technical Specifications

    Resonance frequency fs 4100 Hz
    Net weight 0.2g
    Sound pressure level 70 dB (0.1 m)
    Input voltage 5 Vp-p (1-25 Vp-p; square wave)
    Temperature range −40 ... 85 °C


    Temperature range

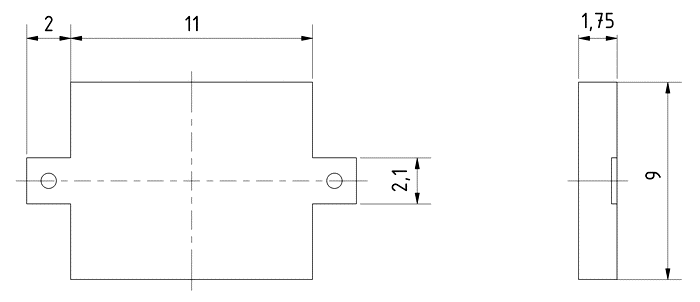

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
