    Visaton Speaker Driver - PAW 46 - 8 Ohm Woofer for PA
    Art. No. 3056

    Visaton PAW46 Woofer - 8 Ohm for PA Applications

    Visaton PAW46 8 Ohm Woofer Rear View
    Visaton PAW46Woofer - 8 Ohm for PA Applications



    Characteristics and Sound Properties
    46 cm (18") woofer for high powered PA and other audio applications.

    Attributes:-

  • Die cast basket
  • Reinforced paper membrane
  • 100 mm voice coil for high power handling
  • Til voice coil former
  • Additional vented air gap (5 holes)
  • 55 mm t-yoke venting
  • M shape surround for high excursion
  • Nomex spider
  • EVA gasket
  • Ferrite magnet
  •

    Technical Specifications

    Cm 0.16 mm/N
    Rated power 700 W
    Maximum power 1000 W
    Nominal impedance Z
    8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu–3200 Hz
    Mean sound pressure level 93 dB (2.83 V/1 m)
    Maximum linear displacement ± 4.9 mm
    Excursion limit ± 10 mm
    Resonance frequency fs 29 Hz
    Height of front pole-plate 12 mm
    Voice coil diameter 100 mm
    Height of winding 21.8 mm
    Cutout diameter 422 mm
    Net weight 11.5 kg
    DC resistance Rdc 6.1 Ohm
    Mechanical Q factor Qms 8.97
    Electrical Q factor Qes 0.38
    Total Q factor Qts 0.36
    Equivalent volume Vas 325 litres
    Effective piston area Sd 1210 cm2
    Dynamically moved mass Mms 186 grams
    Force factor Bxl 23.6 Tm
    Inductance of the voice coil L 1.5 mH



    Recommended Cabinet Sizes

    Volume / Principle BR Channel fb fc / QTC
    120 litre / closed - - 56 Hz / 0.71
    150 litre / bass reflex 6 x BR 25.50 37 Hz -
    273 litre / bass reflex 400 cm² x 27 cm 30 Hz -
    fb = Enclosure resonance (bass reflex system)
    fc = System resonance (sealed box system)
    QTC = The system's Q at resonance (fc)



    Driver Dimensions

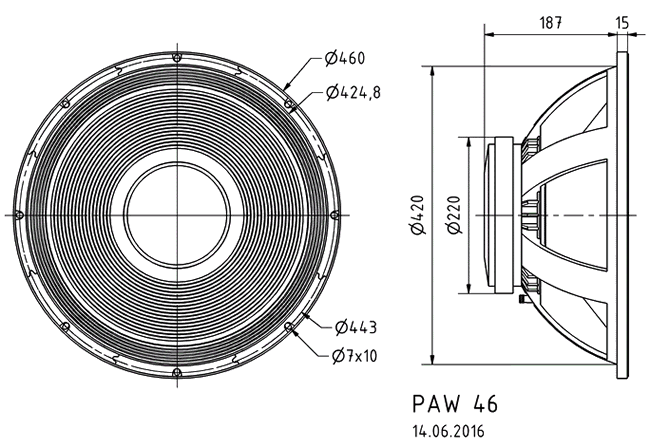

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

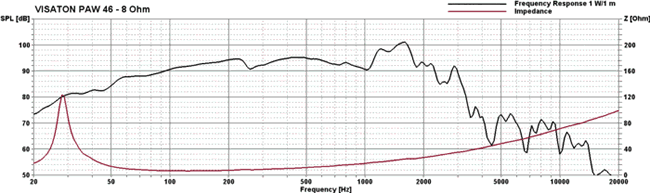

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
