    Visaton Speaker Driver - PAW 30 ND - 8 Ohm Bass Midrange for PA
    Art. No. 3052

    Visaton PAW30ND - 8 Ohm Bass Mid Range

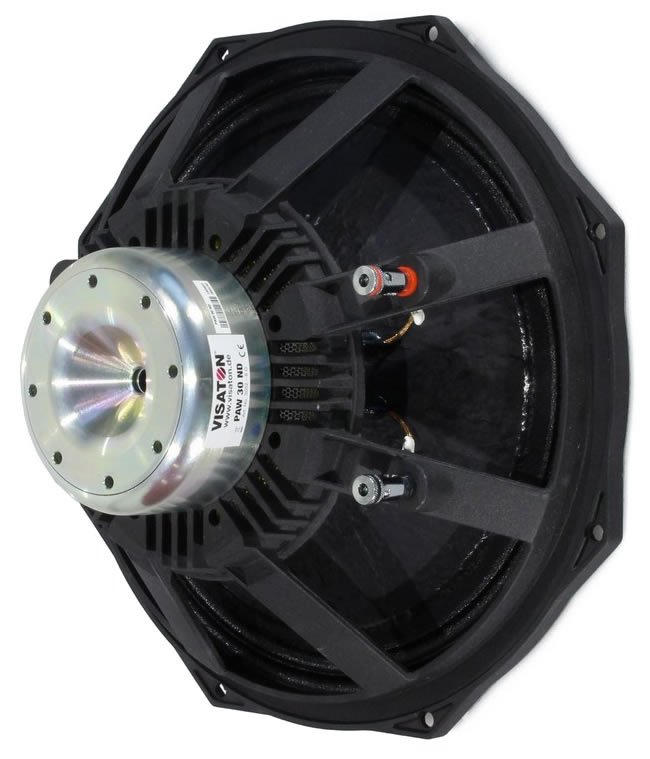

    Visaton PAW30ND - 8 Ohm Bass Mid Range rear view.
    Visaton PAW 30 ND - 8 Ohm Bass Mid Range



    Characteristics and Sound Properties
    30 cm (12") bass midrange for high power PA and other audio applications.

    Attributes:-

  • Octagonal die cast basket
  • Paper membrane
  • 75 mm voice coil for high power handling
  • Til voice coil former
  • Vented spider
  • Additional vented air gap (8 holes)
  • 10 mm T-yoke venting
  • M shape surround for high excursion
  • Connex spider
  • EVA gasket
  • Neodymium magnet
  • Impedance control ring (aluminum)
  •

    Technical Specifications

    Cm 0.19 mm/N
    Rated power 400 W
    Maximum power 600 W
    Nominal impedance Z
    8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu–5500 Hz
    Mean sound pressure level 93 dB (2.83 V/1 m)
    Maximum linear displacement ± 4 mm
    Excursion limit ± 8 mm
    Resonance frequency fs 45 Hz
    Height of front pole-plate 8 mm
    Voice coil diameter 75 mm
    Height of winding 16 mm
    Cutout diameter 286 mm
    Net weight 3.05 kg
    DC resistance Rdc 6.1 Ohm
    Mechanical Q factor Qms 7.63
    Electrical Q factor Qes 0.37
    Total Q factor Qts 0.36
    Equivalent volume Vas 78 litres
    Effective piston area Sd 539 cm2
    Dynamically moved mass Mms 69 grams
    Force factor Bxl 17.6 Tm
    Inductance of the voice coil L 0.55 mH



    Recommended Cabinet Sizes

    Volume / Principle BR Channel fb fc / QTC
    26.5 litre / closed - - 89 Hz / 0.71
    60 litre / bass reflex 3 x BR 25.50 48 Hz -
    fb = Enclosure resonance (bass reflex system)
    fc = System resonance (sealed box system)
    QTC = The system's Q at resonance (fc)



    Driver Dimensions

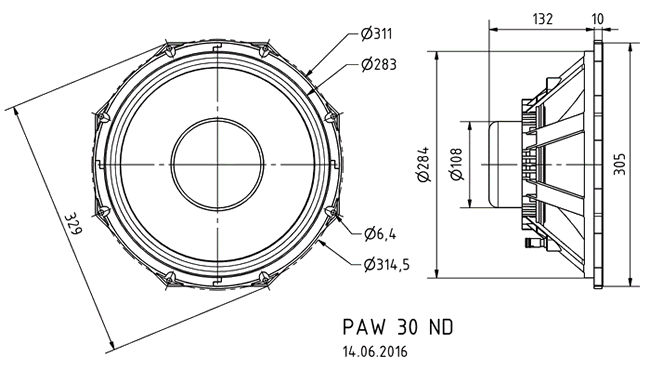

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

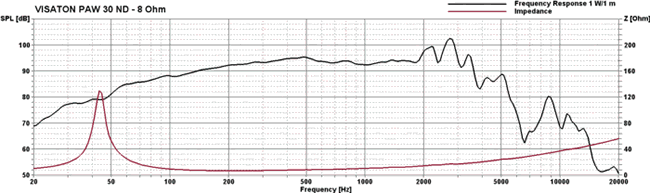

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph
