BG 13 P - 8 Ohm

Thumbnail Filmstrip of BG 13 P - 8 Ohm Images

    Purchase BG 13 P - 8 Ohm

    SKU: V-3011-BG13P BG 13 P - 8 Ohm

    $35.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - BG 13 P - 8 Ohm Full Range
    Art. No. 3011

    Visaton BG13P - 8 Ohms.
    Visaton BG13P - 8 Ohm



    Characteristics and Sound Properties
    13 cm (5") full-range speaker with tweeter dome. Very evenly spread frequency response and excellent voice reproduction quality. High level of efficiency. For use in larger scale PA arrays or in smaller monitor speakers.

    Typical applications:
    - PA arrays, projection speakers
    - Smaller monitor speakers



    Technical Specifications

    Rated power 20 W
    Maximum power 40 W
    Nominal impedance Z 8 Ohm
    Frequency response 120-20000 Hz
    Mean sound pressure level 92 dB (1W/1m)
    Dispersion angle (-6 dB) 61°/4000 Hz
    Excursion limit ± 2 mm
    Resonance frequency fs 168 Hz
    Magnetic induction 1.0 T
    Magnetic flux 190 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 4.5 mm
    Cutout diameter 110 mm
    Net weight 0.43 kg
    DC resistance Rdc 5.2 Ohm
    Mechanical Q factor Qms 3.06
    Electrical Q factor Qes 1.58
    Total Q factor Qts 1.04
    Equivalent volume Vas 2.0 litres
    Effective piston area Sd 68 cm2
    Dynamically moved mass Mms 3.0 grams
    Force factor Bxl 3.2 Tm
    Inductance of the voice coil L 0.65 mH
    Temperature range −25 ... 70 °C

    Temperature Range

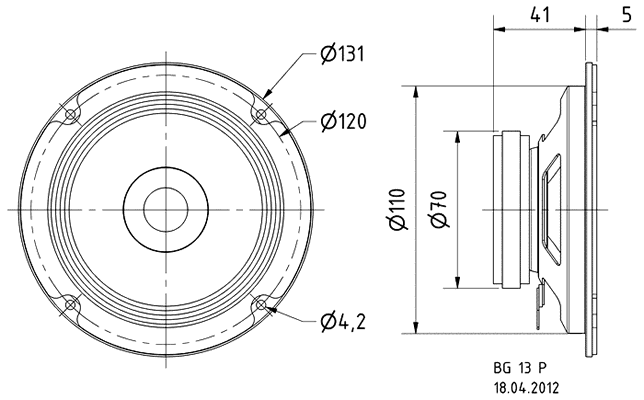

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

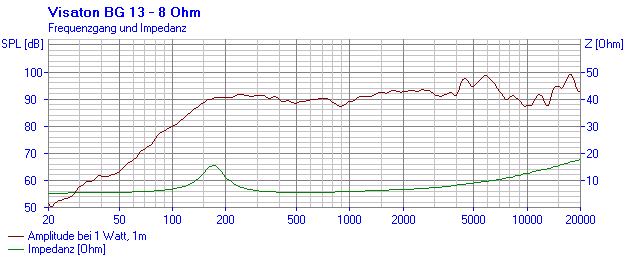

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

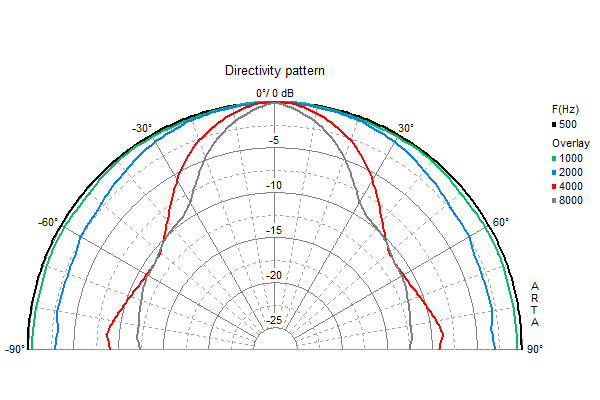

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
