K 70 - 8 Ohm

Thumbnail Filmstrip of K 70 - 8 Ohm Images

    Purchase K 70 - 8 Ohm

    SKU: V-2973 K 70 - 8 Ohm

    $13.00 each - special order
    Quantity in Basket:  None







    Visaton Speaker Driver - K70 - 8 Ohm 7cm (2.8") Fullrange Speaker
    Art. No. 2973

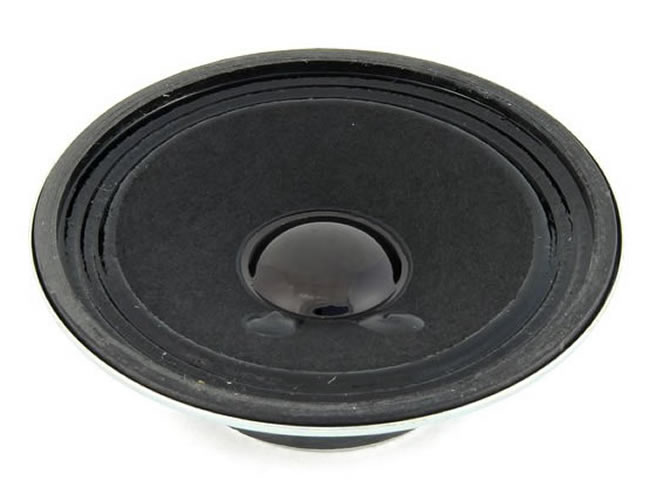

    Visaton K70 8 Ohm

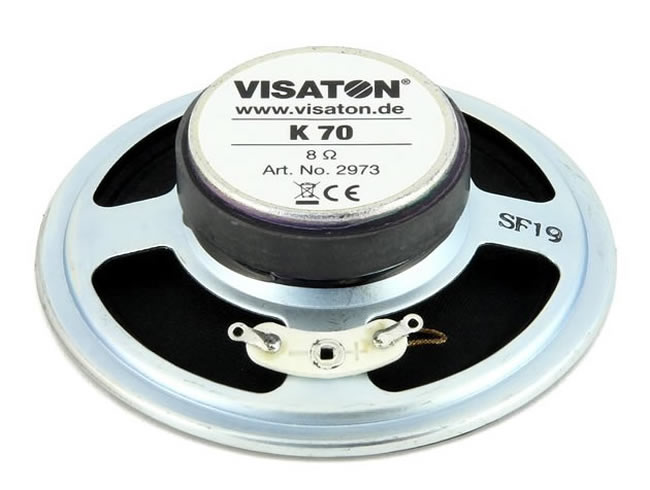

    K70 - 8 Ohm Rear View
    Visaton K70 - 8 Ohm 7 cm (2.8") full-range-speaker



    Characteristics and Sound Properties
    7 cm (2.8") full-range-speaker with perfect price-performance ratio for installation in confined spaces. Balanced frequency response and high efficiency with low installation depth.

    Typical applications:-

    • Monitoring speaker for electronic devices
    • Model construction
    • Communication technology



    Technical Specifications

    Rated power 2 W
    Maximum power 3 W
    Nominal impedance Z 8 Ohm
    Frequency Response 179-20000 Hz
    Mean sound pressure level
    85 dB (1 W/1 m)
    Resonance frequency fs 300 Hz
    Height of front pole-plate 2 mm
    Voice coil diameter 13.7 mm
    Height of winding 2.8 mm
    Cutout diameter 63 mm
    Net weight 65 g
    Temperature range -20 ... 70°C

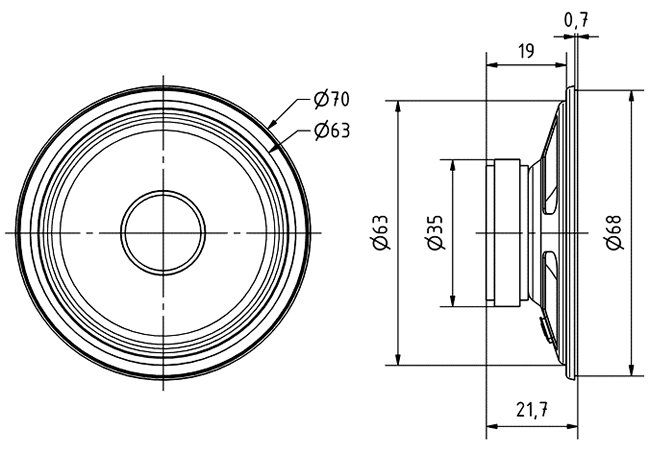

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

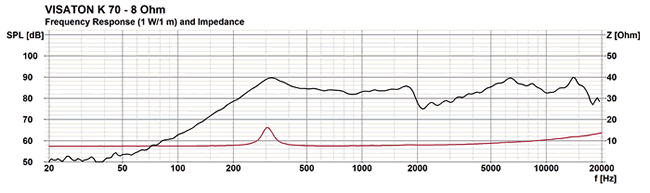

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph
